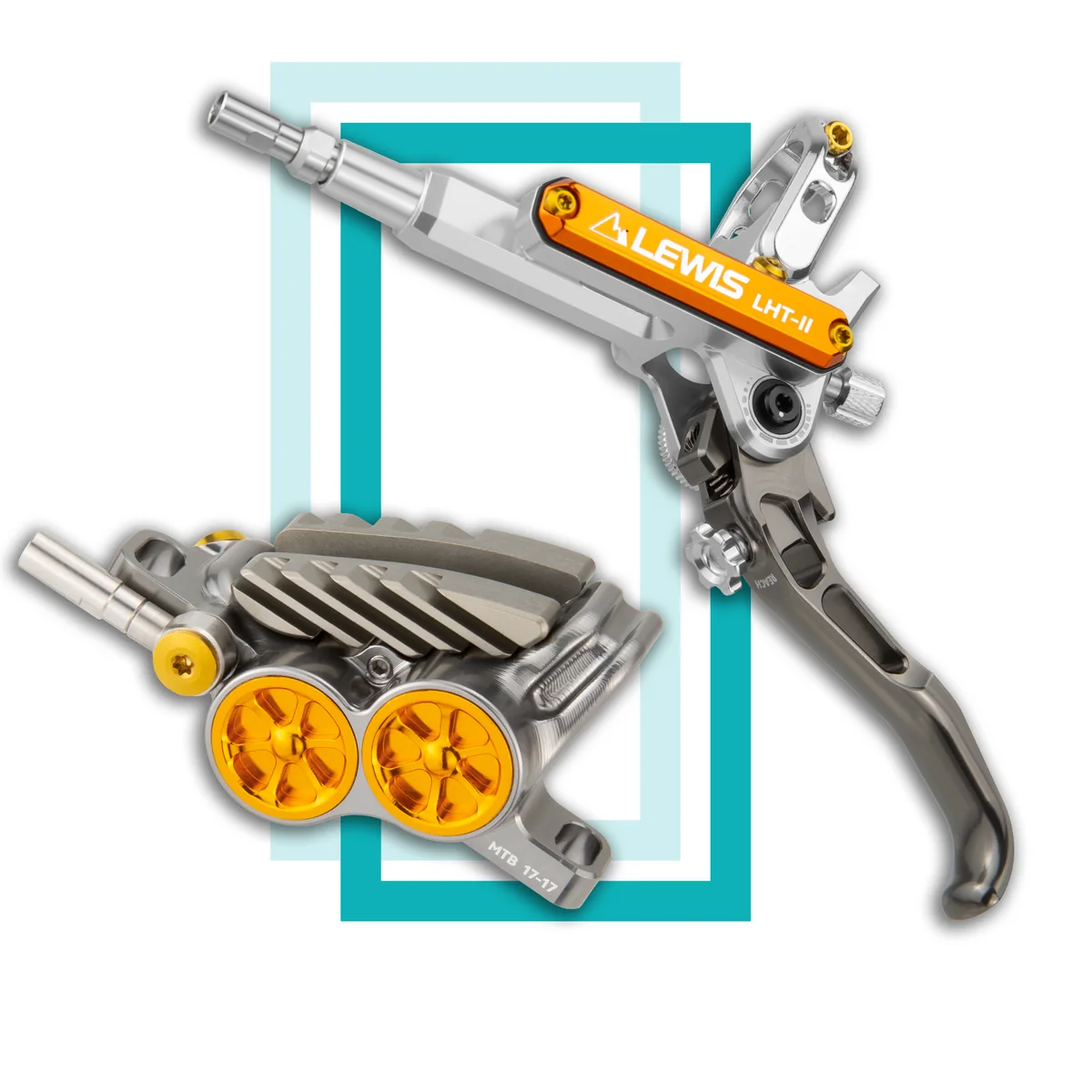

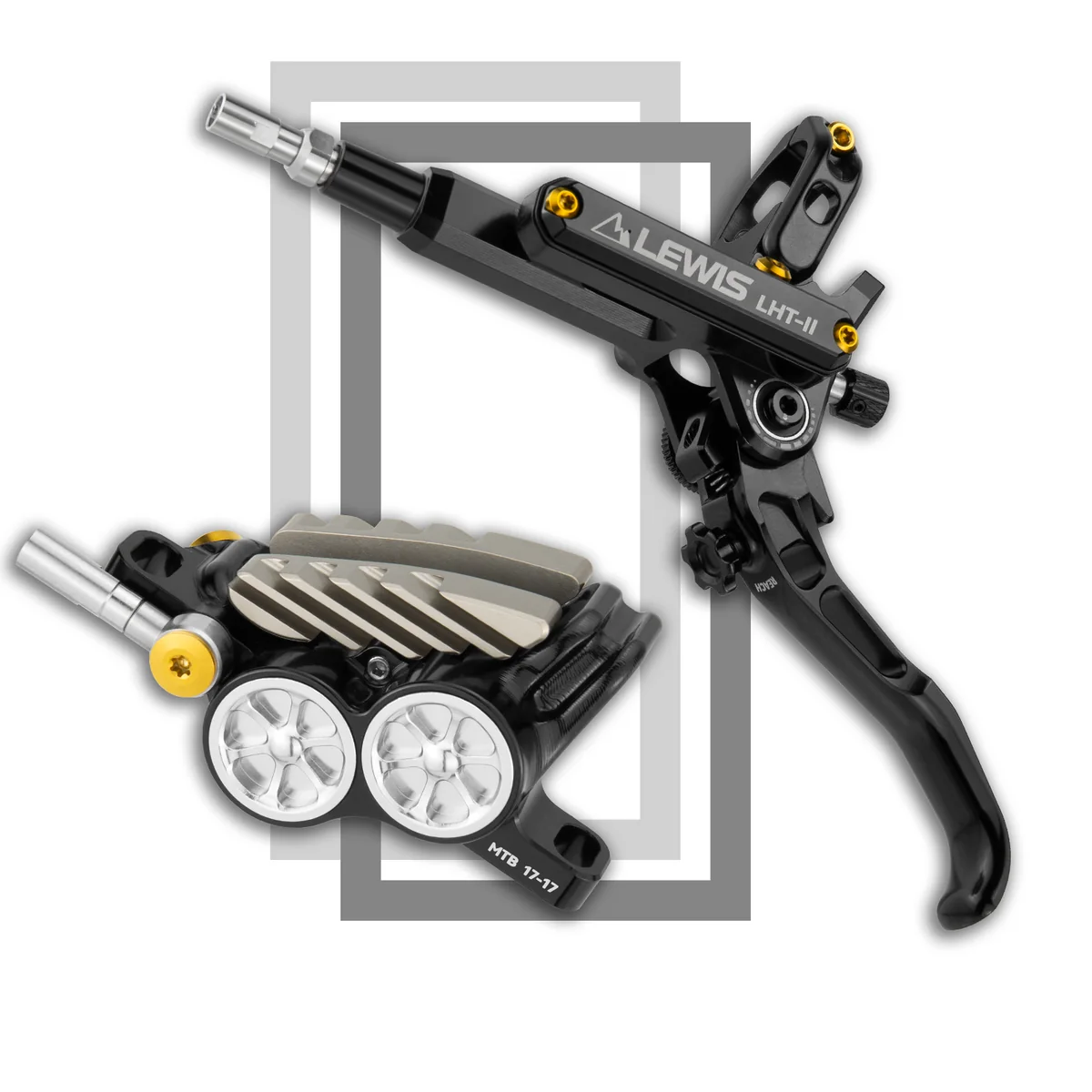

PureTrek LHT-II Pistons 4x17mm Titanium Monoblock Caliper
-
Estimated Delivery:Oct 20 - Oct 24
-
Free Shipping & Returns: On all orders over $75
Downhill, Enduro, All-Mountain
High-precision CNC machining technology
Upgraded Leverage Ratio Adjustment
4x17mm Titanium+Ceramic Monoblock Pistons
Independent Cooling Fins
Precise Reach Adjustment
Mineral Oil
Ultra light lever action, Powerful but predictable braking force.
Bearing pivots provide superior modulation and feel.
Lever+caliper weight = 242g(without Oil Hose)
Technology

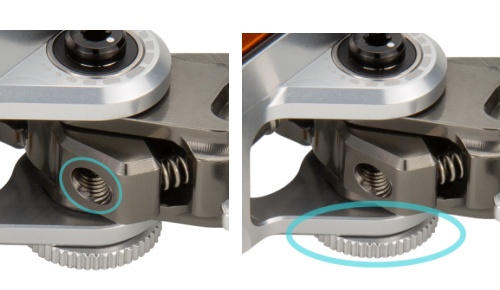

Improved Adjustment Performance

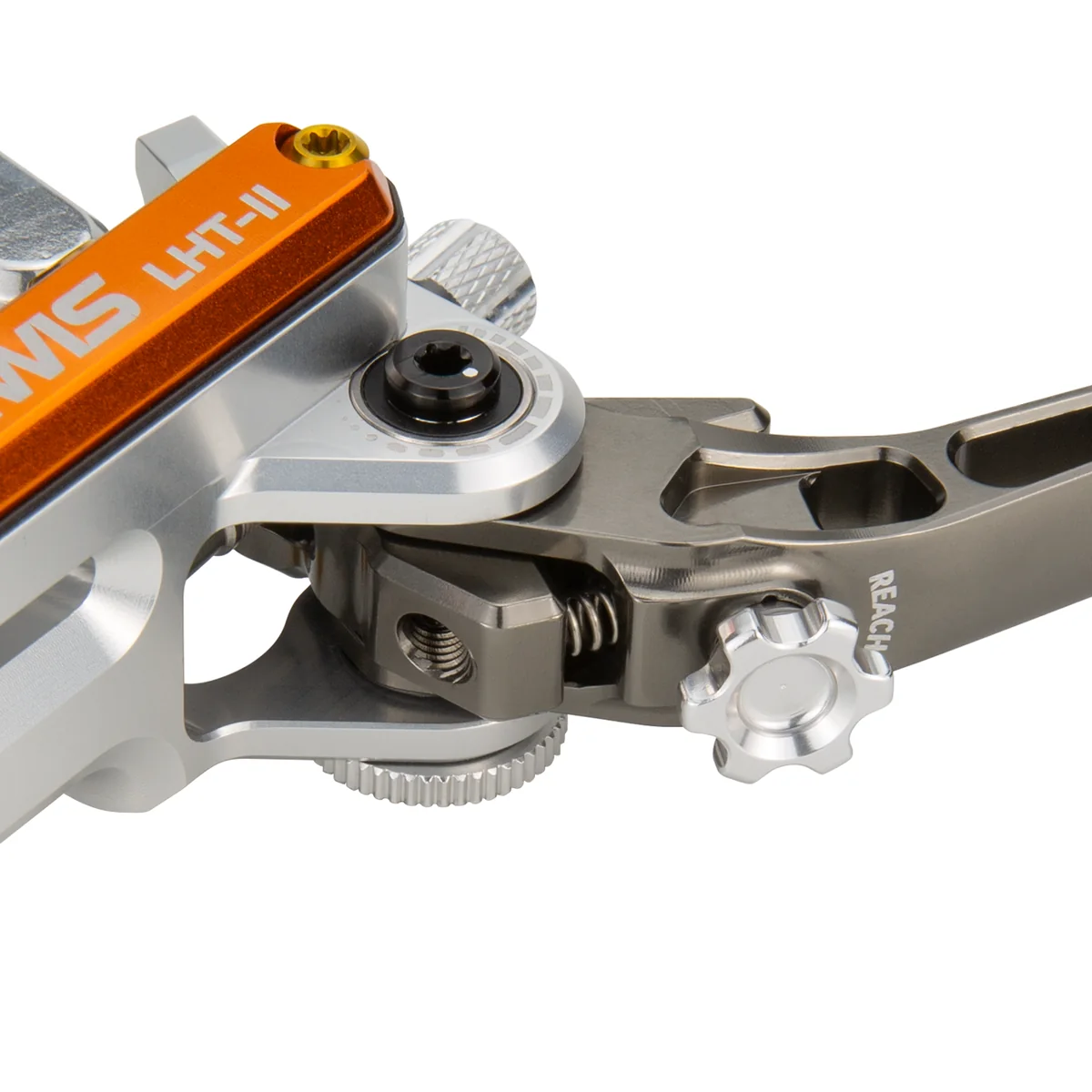

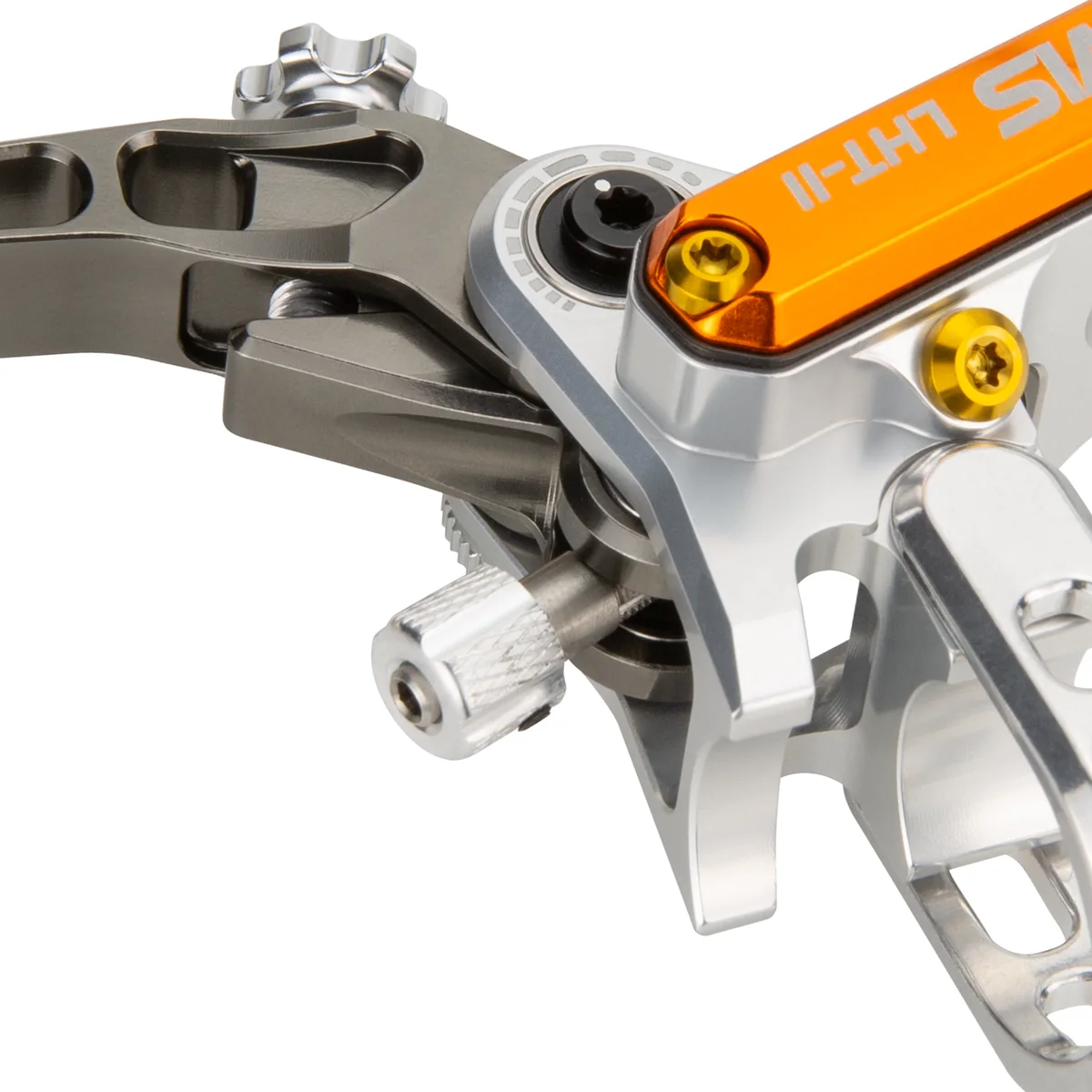

Lever Ratio Locking Screw & Bottom‑Mount Lever Ratio Adjustment Knob
-Loosen the lever‑ratio locking screw and turn the lever‑ratio adjustment knob for adjustment.
-Turn the lever‑ratio adjustment knob to adjust the brake lever leverage ratio for your preferred brake feel.

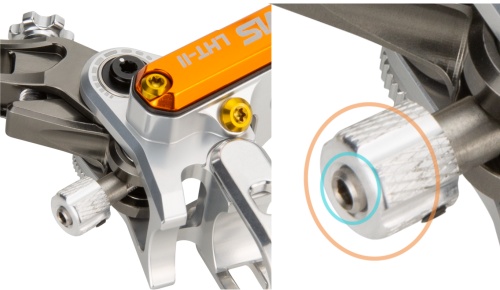

Patented Lever Reach & Bite Point Adjustments
Turn the brake‑lever travel adjust nut to set brake lever reach. Use an Allen key for bite point adjustment.
Orange: lever reach
Blue: bite point

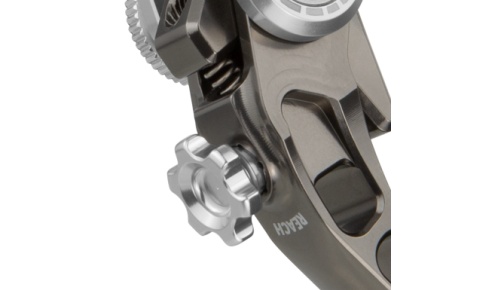

Precise Lever Reach Adjustment
Conventional lever reach adjustment alters the brake leverage‑ratio curve. Our Precise Lever Reach Adjustment lets you modify reach without changing the leverage ratio, enabling finer tuning of brake feel.

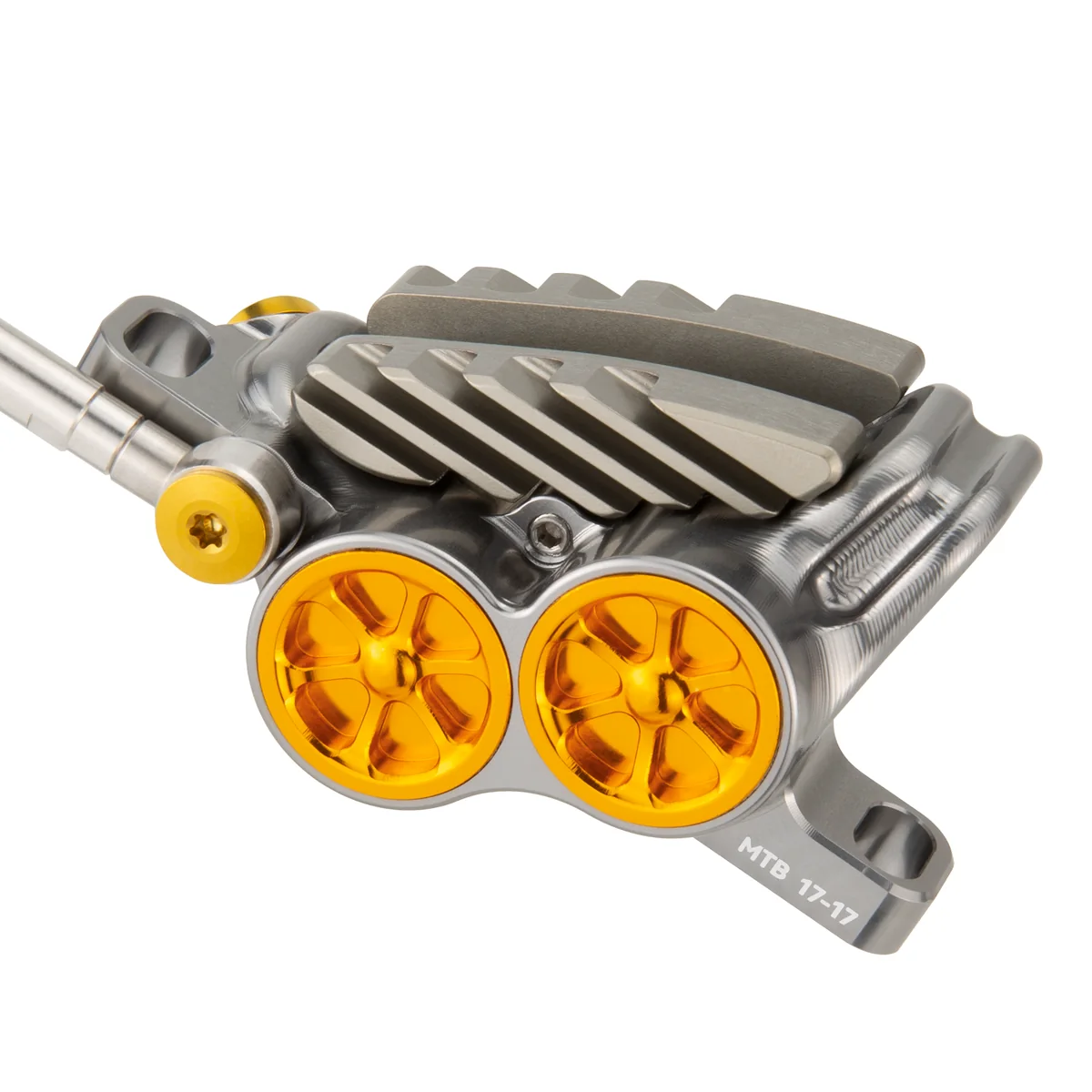

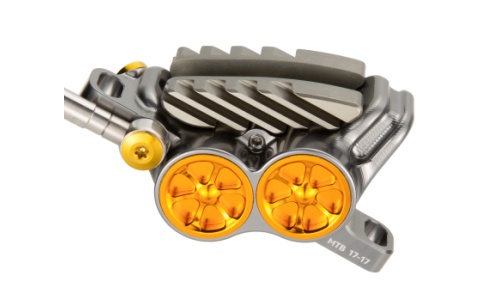

Monoblock Caliper
The LHT‑II brake caliper features a 4‑piston configuration (4×17 mm). Its monoblock caliper construction with additional cooling fins delivers outstanding braking power and consistent heat‑fade resistance.
Titanium Pistons with Ceramic Insulation
In high-intensity use environments, the good high-temperature thermal conductivity of the titanium material complements the ceramic thermal insulation, allowing the pads to conduct and dissipate heat more evenly.

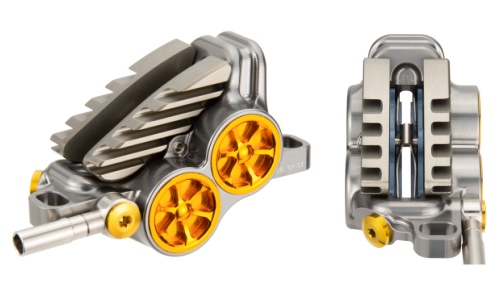

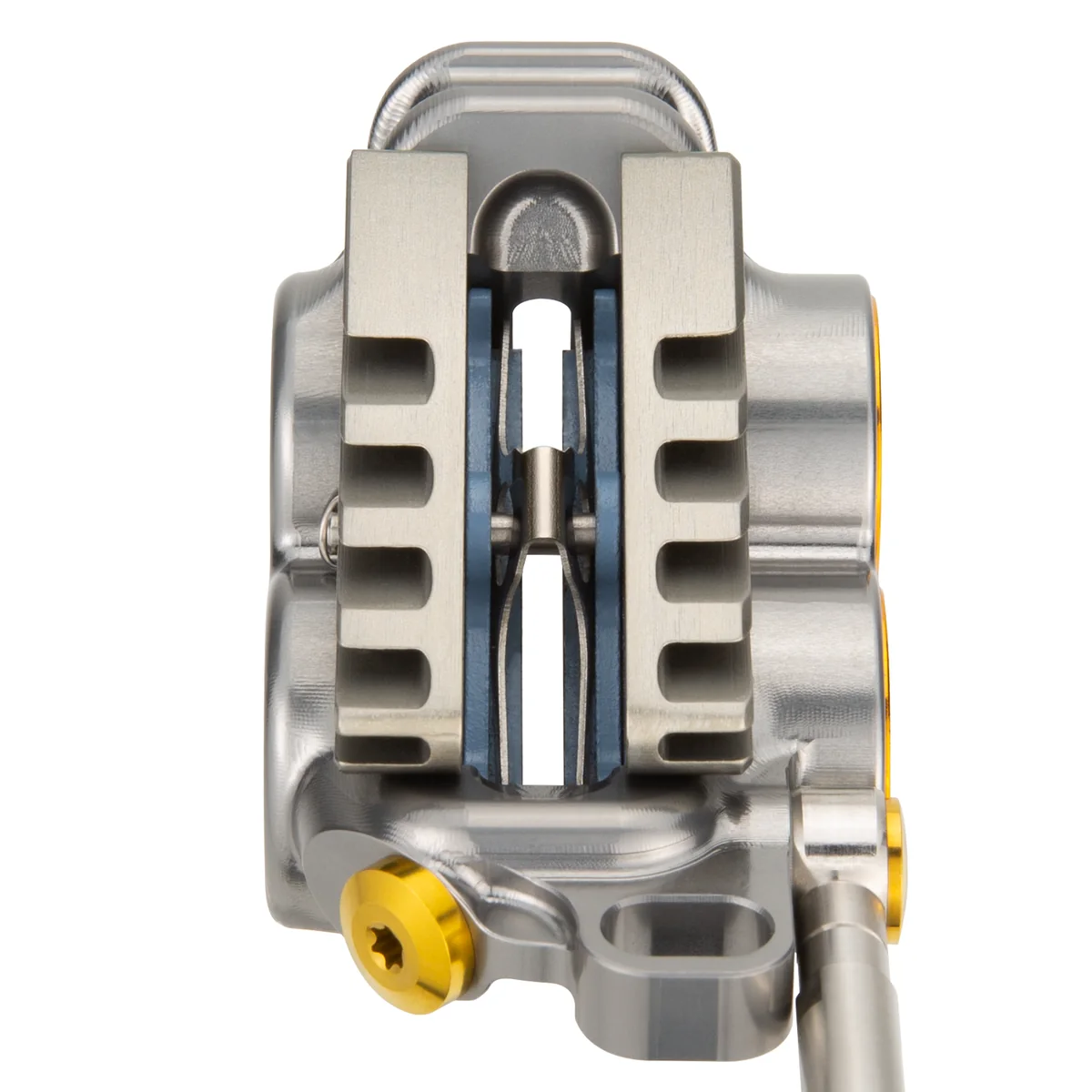

Independent cooling‑fin design
The independent cooling fins are not fixed to the brake‑pad assembly, Built for high‑intensity riding conditions. No fin replacement is required when changing brake pads.
Specifications

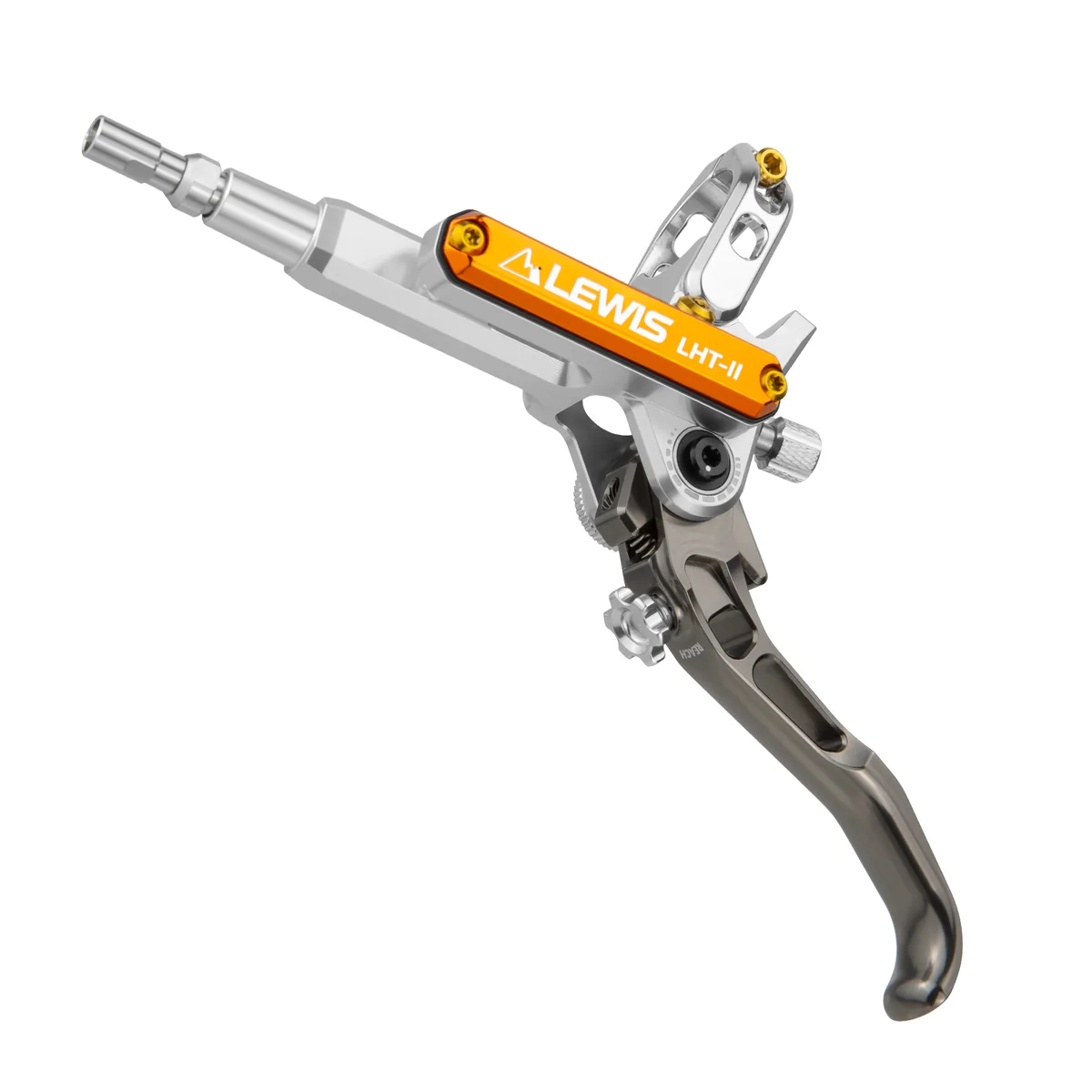

| Axial MASTER CYLINDER | |
| Material | CNC 7075T6 Aluminum |
| Color | Black, Silver+Gunsmoke+Orange |
| Clamp Type | Split |
| Screws | Titanium |
| ADJUSTABLE LEVER REACH | Yes, tool free |
| ADJUSTABLE PAD BITE POINT | Yes, with 2mm Allen key |
| ADJUSTABLE LEVERAGE RATIO | Yes, tool free |
| LEVER BLADE | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Gunsmoke |
| Brake lever version | 1 Finger |
| CALIPER | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver+Orange |
| MOUNT TYPE | Post mount |
| Piston | 4 x 17mm Titanium + Ceramic Pistions |
| Screws | Titanium |
| Pad type | Metallic |
| Hose | |
| Hose size | Outside Diameter 5mm，Bore 2.2mm |
| Hose length | 90cm front /180 cm rear |
| Hose finish | Black, Braided |
| INTENDED USE | Enduro, Downhill, All-Mountain, E-bike, Dirtbike |
| Rotors | Not included, optional (180 mm|200mm | 203 mm|220mm | 223 mm) Recommending PureTrek 2.3mm rotors or other brands of 2.0mm -2.5mm thick rotors |
| Adapter | Not included |
| WEIGHT | Master Cylinder 105g, Caliper 137g |
| Oil | Mineral oil |
| Bleed Kit Recommendation | PureTrek Bleed Kit |
