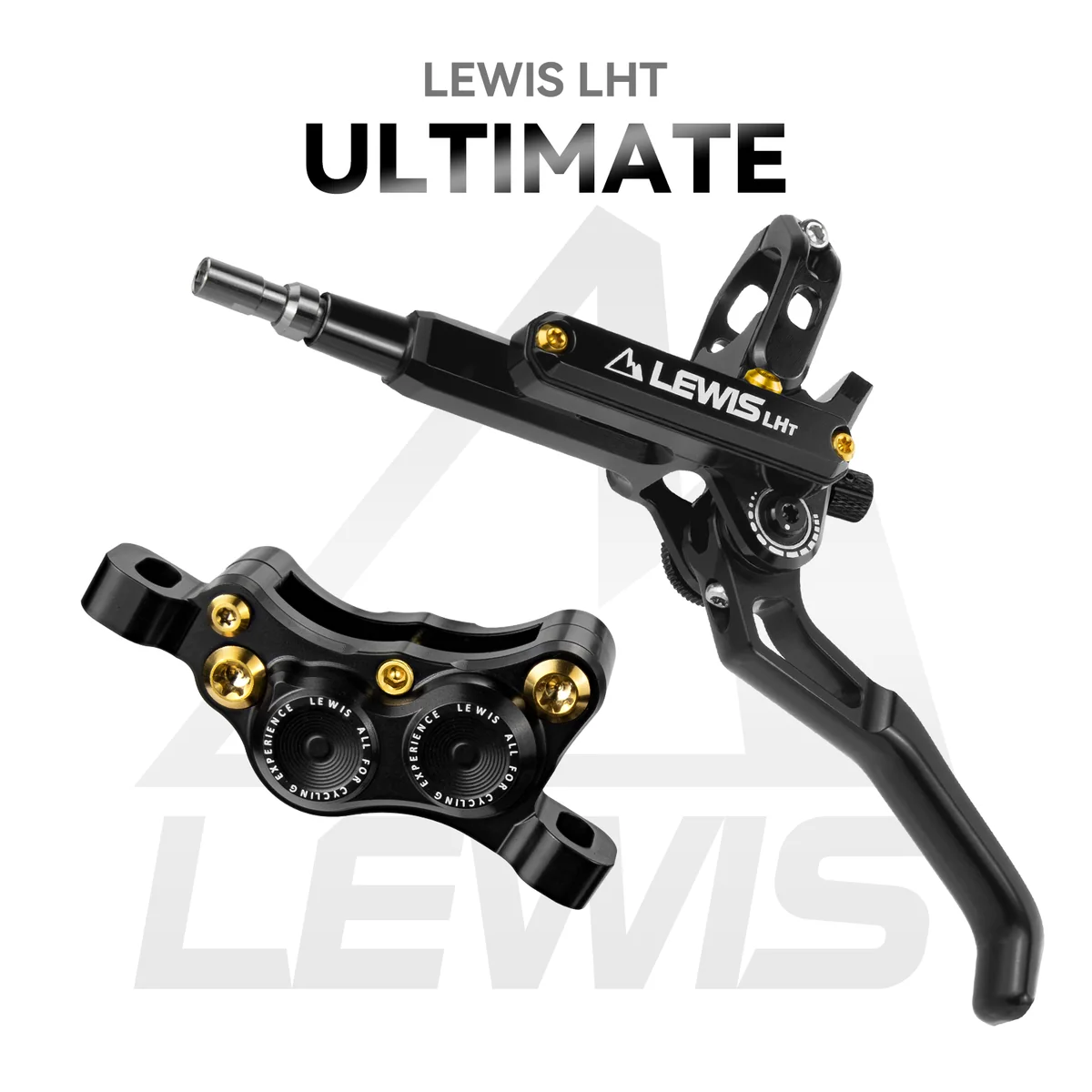

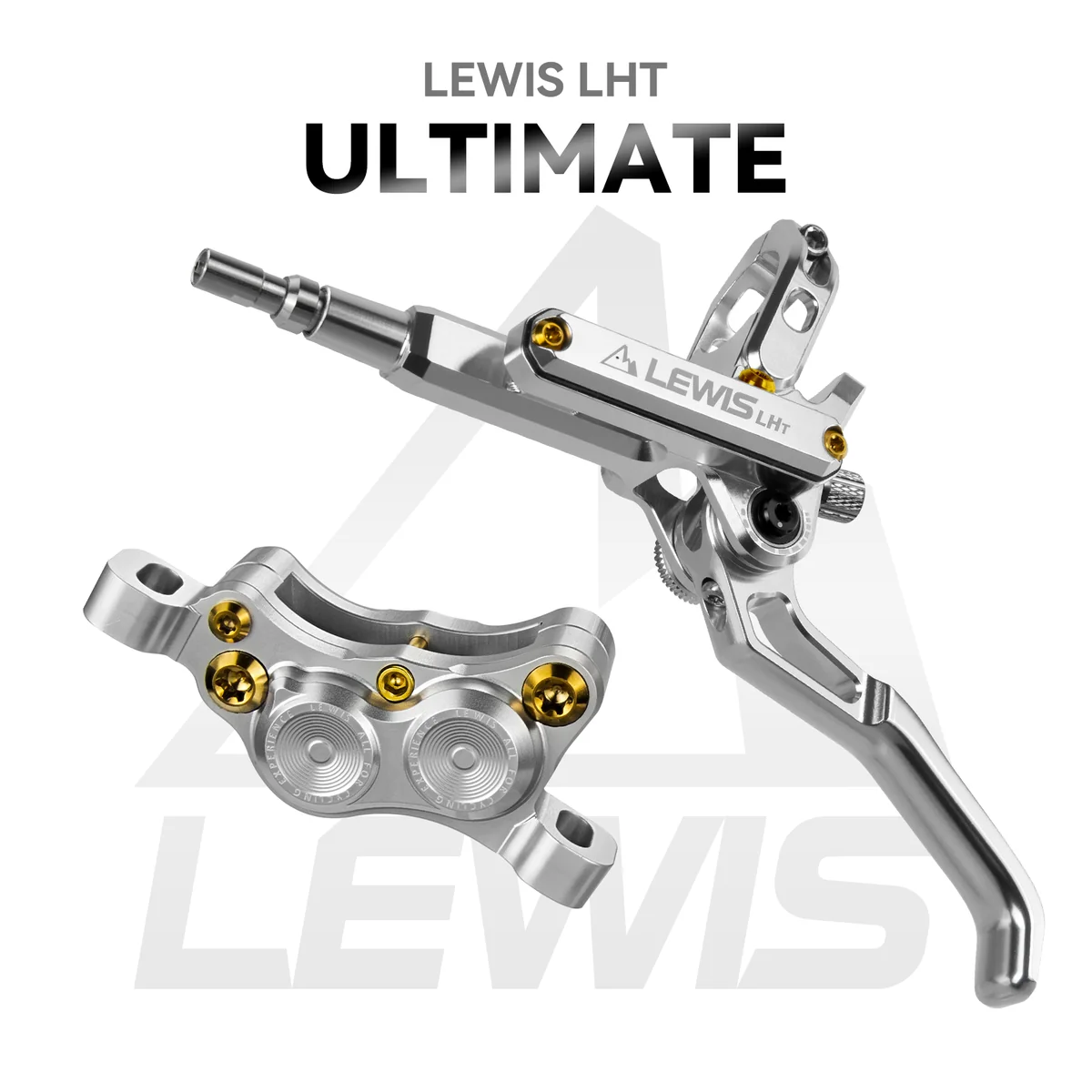

PureTrek LHT Axial Cylinder 4x17mm Titanium Pistons Hydraulic Disc Brake
-
Estimated Delivery:Oct 20 - Oct 24
-
Free Shipping & Returns: On all orders over $75
Downhill, Enduro, All-Mountain
High-precision CNC machining technology
Patented Triple Adjustments Technology for Leverage Ratio & Lever Reach & Bite Point.
4x17mm Titanium+Ceramic pistons with TP-40 sintered Brake pads.
Mineral Oil
Ultra light lever action, Powerful but predictable braking force.
Bearing pivots provide superior modulation and feel.
Front+Rear Brakes weight = 639g(Oil Hose included), 422g without Oil Hose.
Approx. 68g for titanium parts, reduction weight of approx. 39g, compared to stainless steel components
Technology

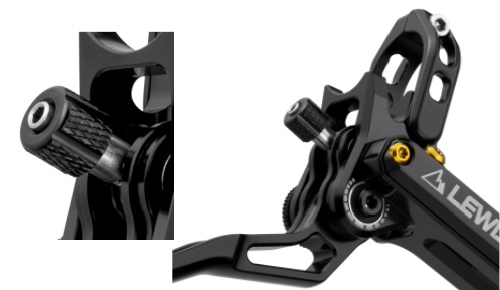

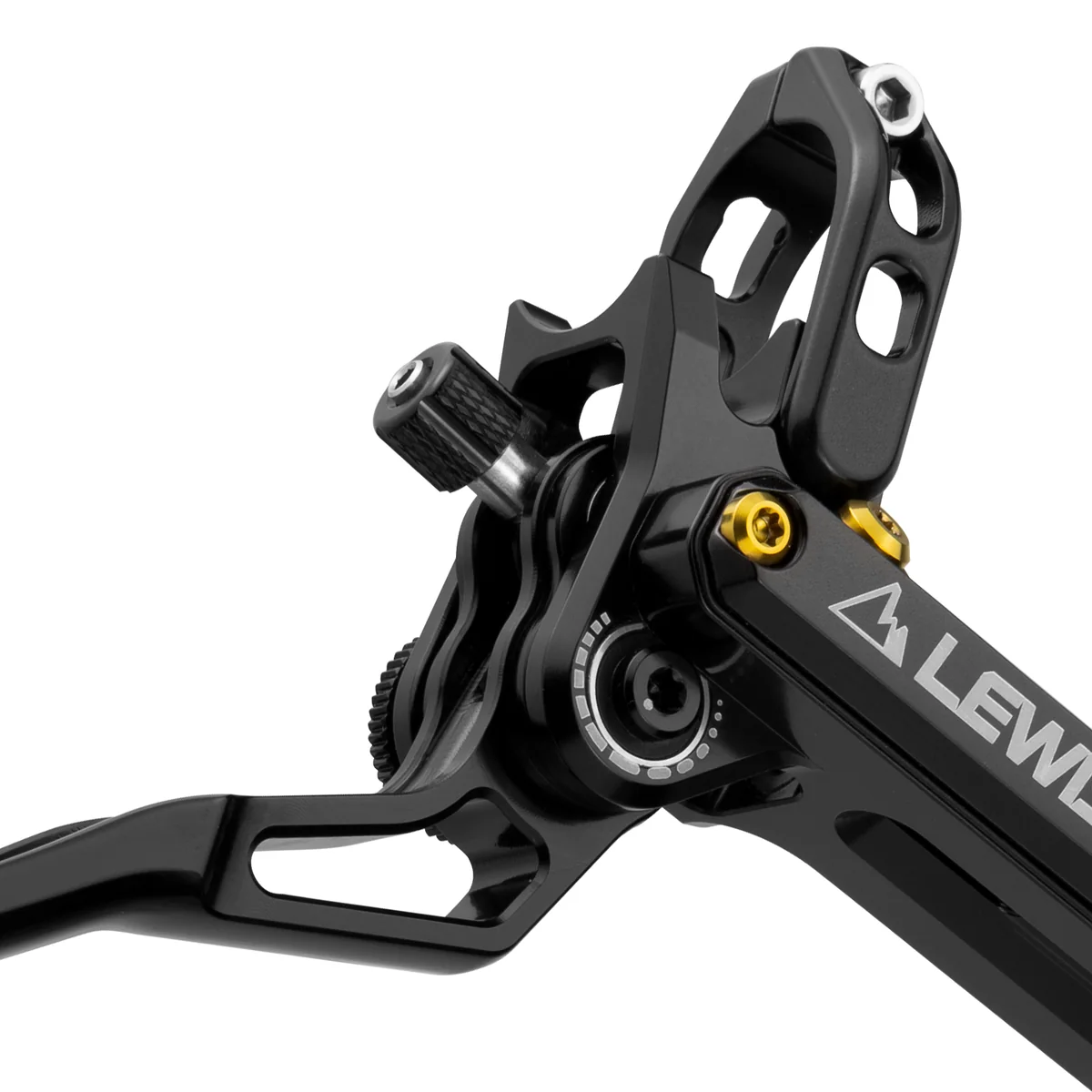

Bite Point & Lever Reach Adjustment
PureTrek's technology for dual adjustment of lever reach & bite point allows you to customize the feel to your preference for superior performance out on the trails.
Reach(tool free), bite point(with allen key).

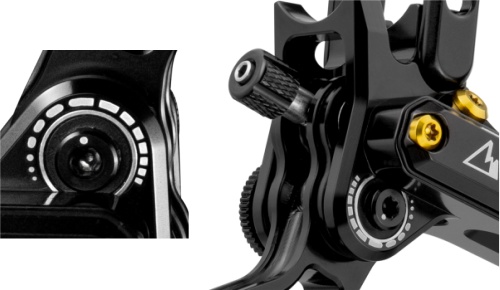

Leverage Ratio Adjustment
The patented Free Lever Adjustment technology allows the lever ratio to beadjusted by moving the center point of the brake lever.

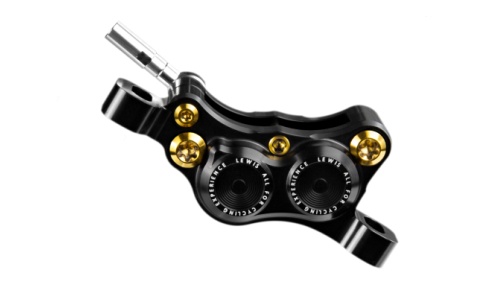

4x17mm Pistons
Upgraded 4x17mm pistons, with titanium bolts, high strength and light weight.

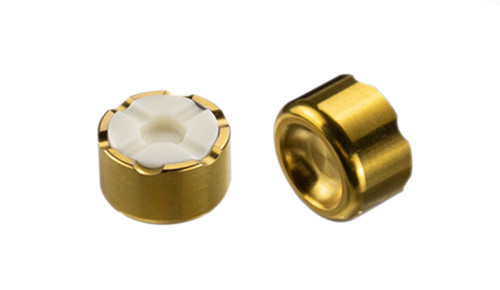

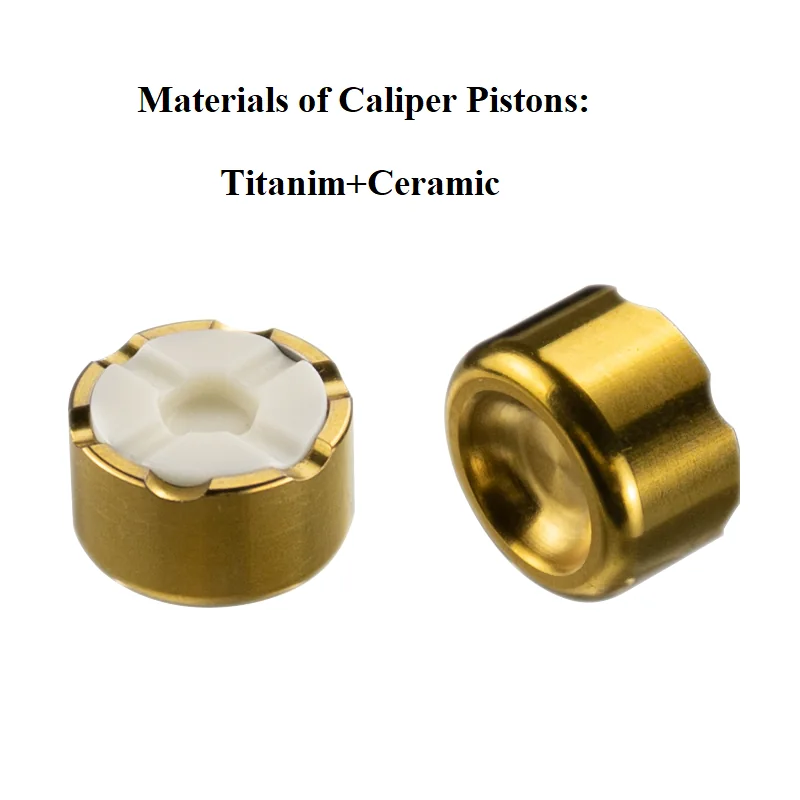

Titanium Pistons with Ceramic Insulation
In high-intensity use environments, the good high-temperature thermal conductivity of the titanium material complements the ceramic thermal insulation, allowing the pads to conduct and dissipate heat more evenly.

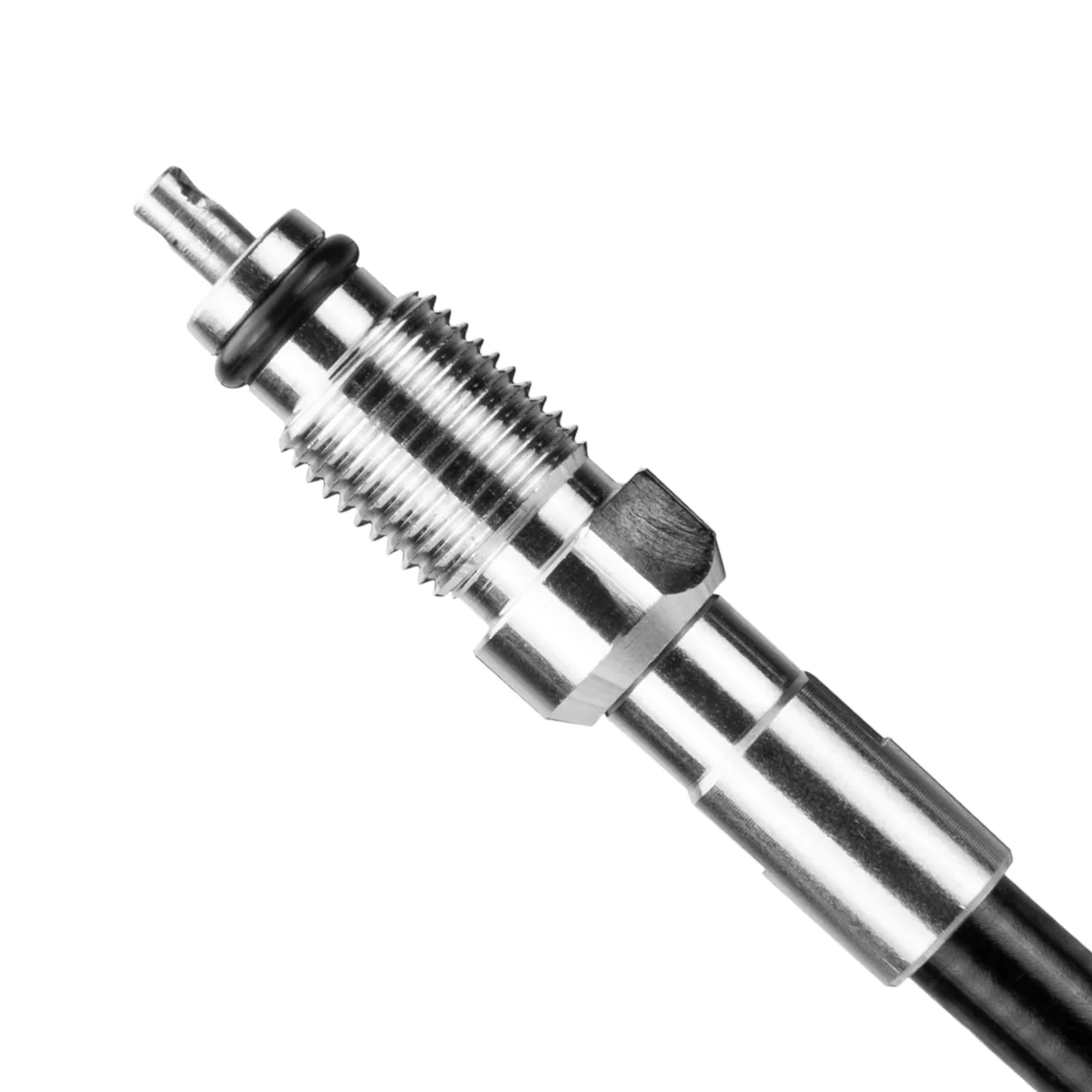

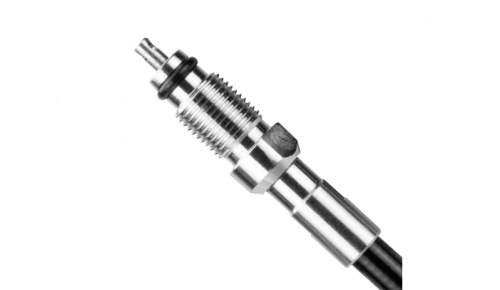

Anti-Leak Oil System
Detachable Olive Head used in Anti-leak System makes it easier for the rider to disassemble the brake hose.
Specifications
| Axial MASTER CYLINDER | |
| Material | CNC 7075T6 Aluminum |

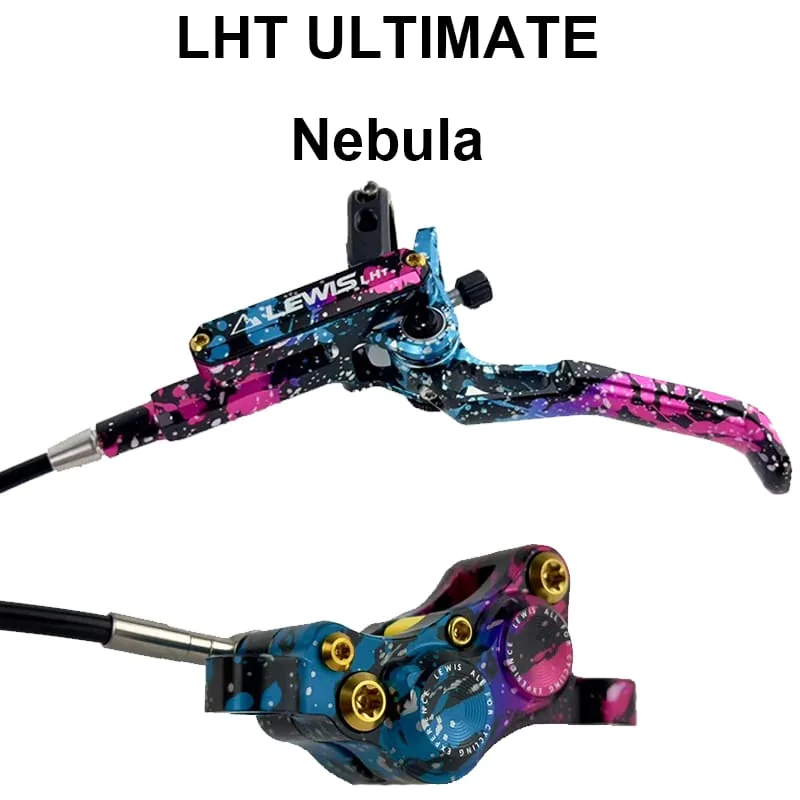

| Color | Black, Silver, Nebula, customized colors |
| Clamp Type | Split |
| Screws | Titanium |
| ADJUSTABLE LEVER REACH | YES, Tool Free |
| ADJUSTABLE PAD BITE POINT | Yes, with 2mm Allen key |
| LEVER BLADE | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver, customized colors |
| Brake lever version | 1 Finger |

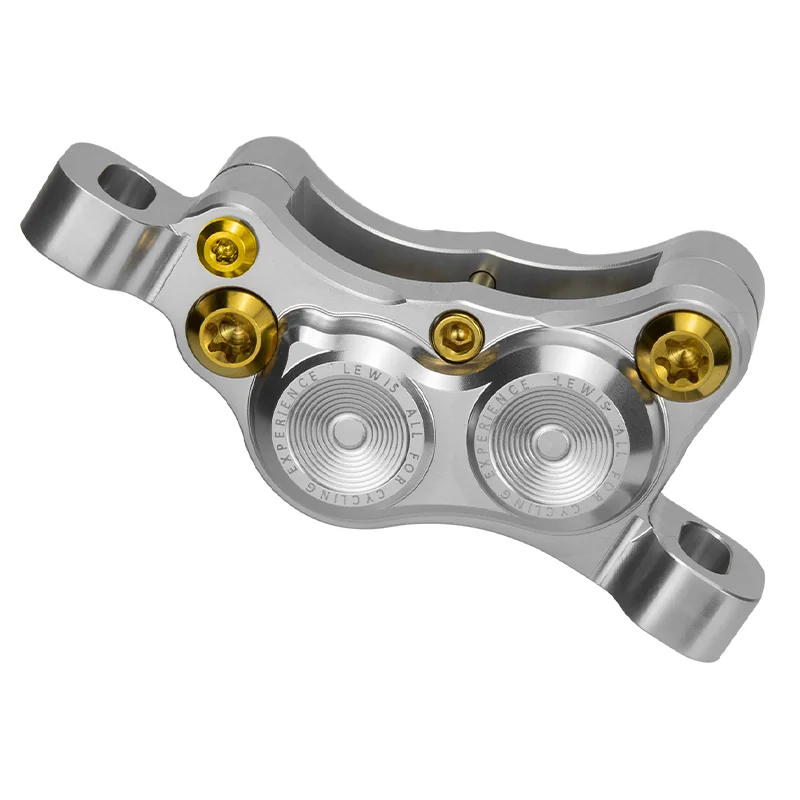

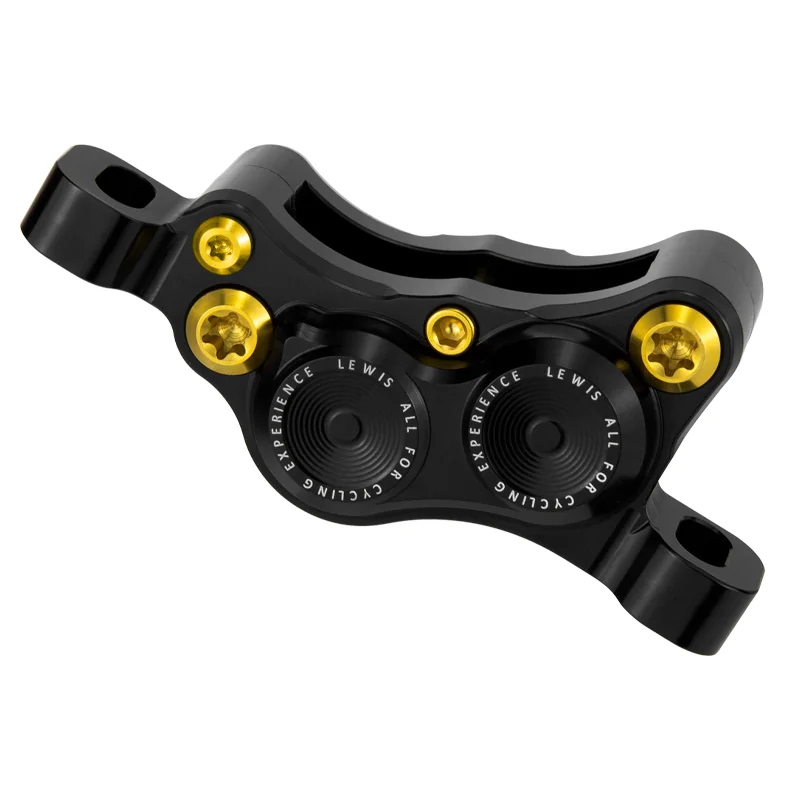

| CALIPER | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver, Black & Silver, customized colors |
| MOUNT TYPE | Post mount |
| Piston | 4 x 17mm Titanium + Ceramic Pistions |
| Screws | Titanium |
| Pad type | Metallic |

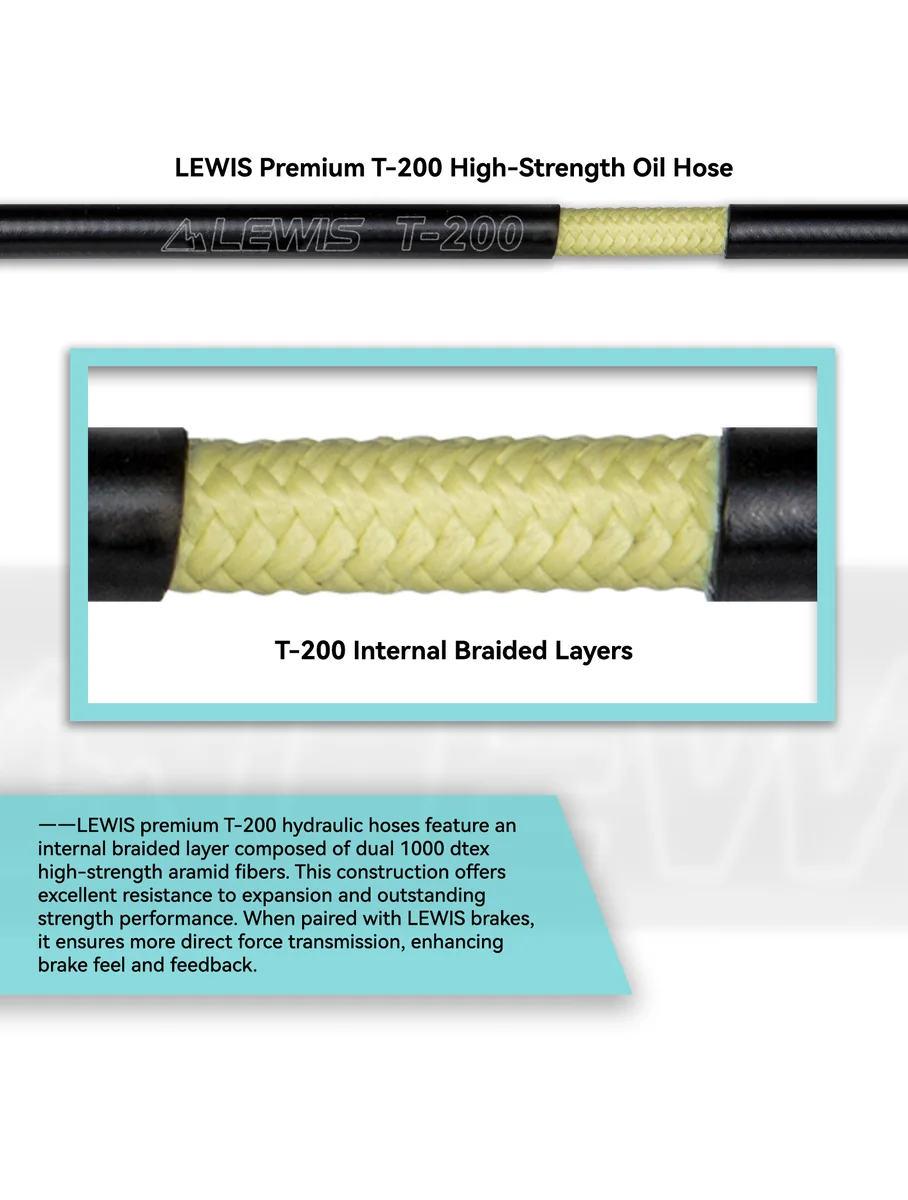

| Hose | |
| Hose size | Outside Diameter 5mm，Bore 2.2mm |
| Hose length | 90cm front /165 cm rear |
| Hose finish | Black, Braided |
| INTENDED USE | Enduro, Downhill, All-Mountain, E-bike, Dirtbike |
| Rotors | Not included, optional (180 mm|200mm | 203 mm|220mm | 223 mm) Recommending PureTrek 2.3mm rotors or other brands of 2.0mm -2.5mm thick rotors |
| Adapter | Not included |
| WEIGHT | Master Cylinder 94g, Caliper 117g |
| Oil | Mineral oil |
| Bleed Kit Recommendation | PureTrek Bleed Kit |
