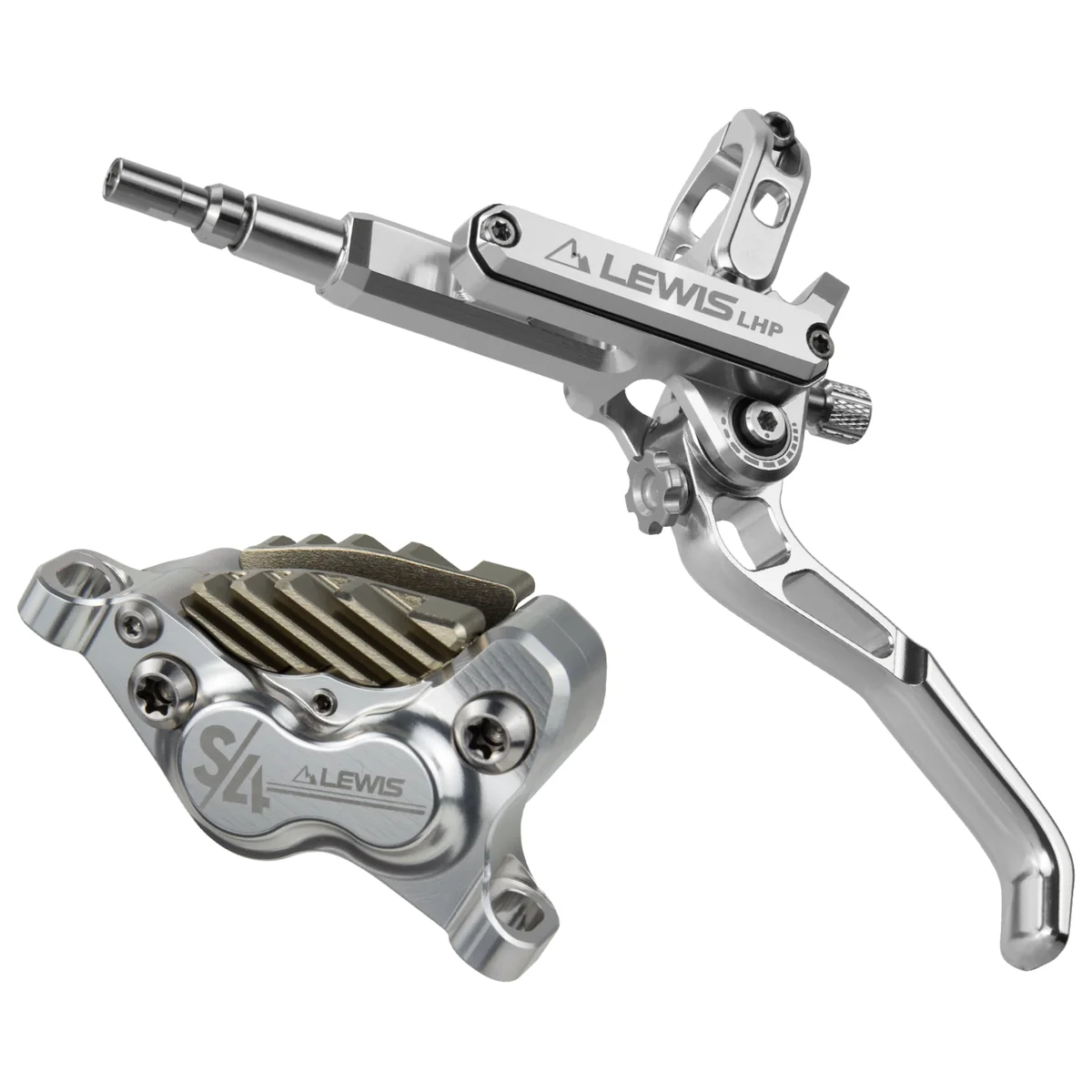

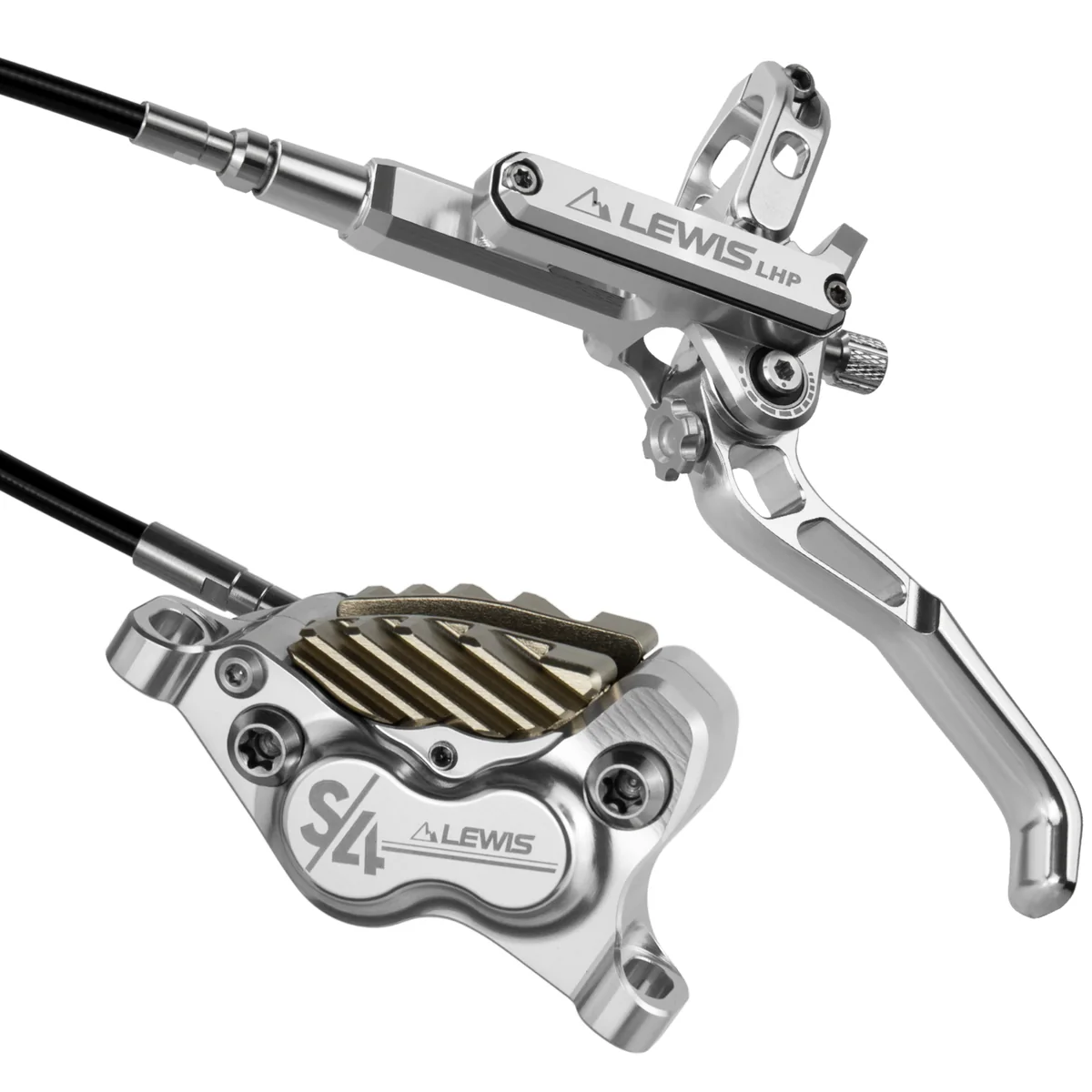

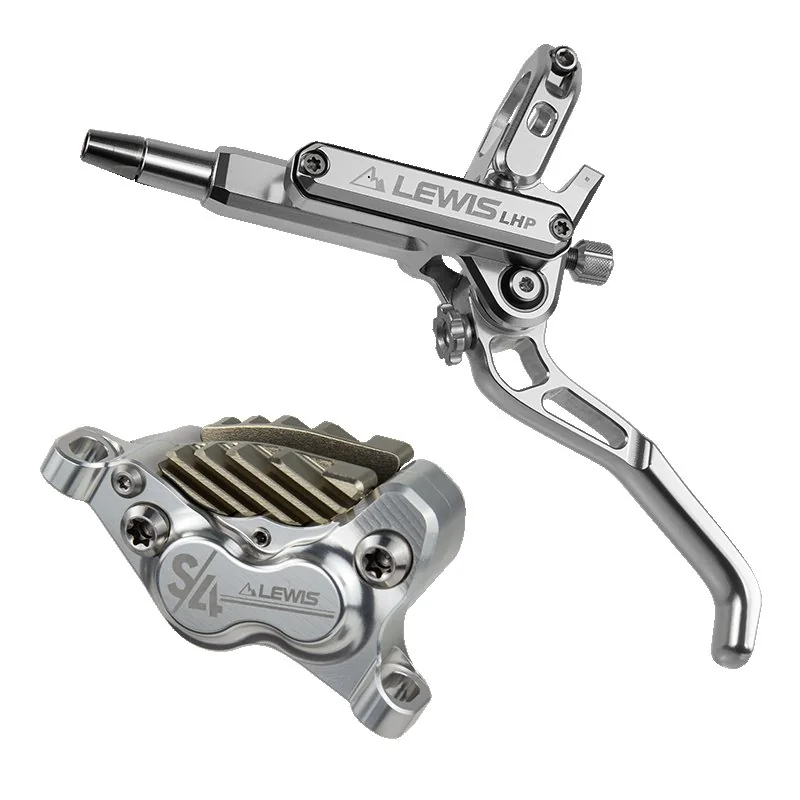

PureTrek LHP S4 Axial Cylinder 4 Pistons Hydraulic Disc Brake With Cooling Fins
-
Estimated Delivery:Oct 20 - Oct 24
-
Free Shipping & Returns: On all orders over $75
Downhill & Enduro
Material: 7075 T6 Aluminum
Piston: 4 pistons (2x14mm, 2x17mm)
Mineral Oil
Three Adjustment For LEVER REACH & BITE POINT & LEVERAGE RATIO
Independent cooling fins design for better high temperature performance

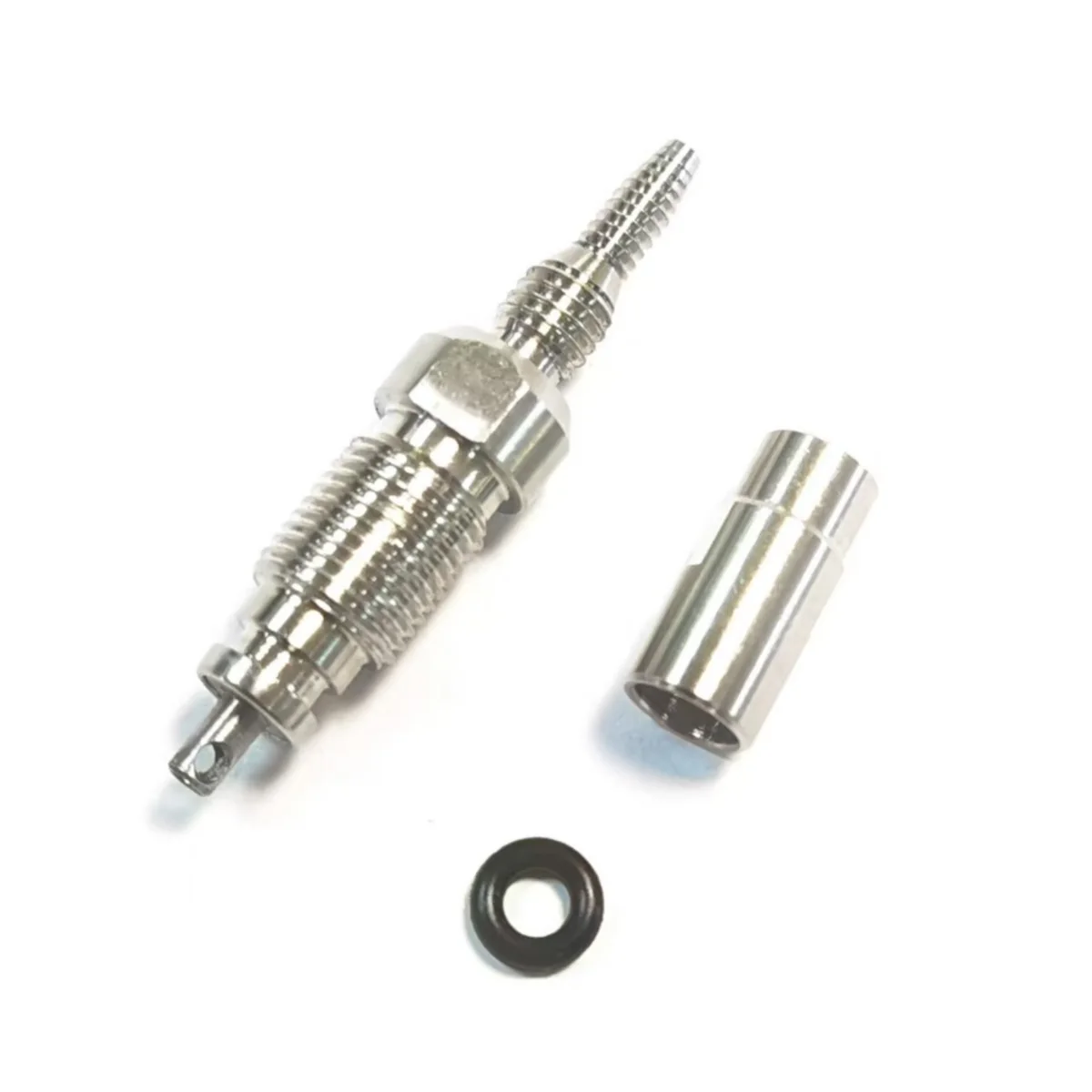

Removable Olives used in Anti-oil loss system connector
Upgraded leverage ratio adjustment knob
Single brake weight: 249g (without oil hose and brake pads)
Single brake lever: 98g
Single caliper: 151g( without brake pads)
Technology

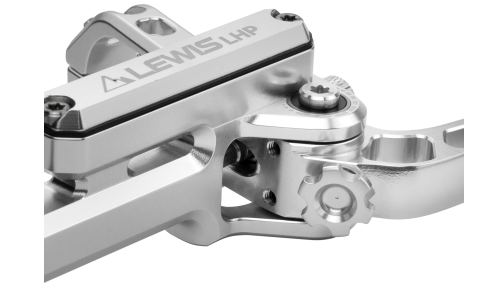

Newly Upgraded Levera'geage Ratio Adjustment System
The LHP brake lever adopts a newly upgraded leverage ratio adjustment system, which has a better adjustment experience.

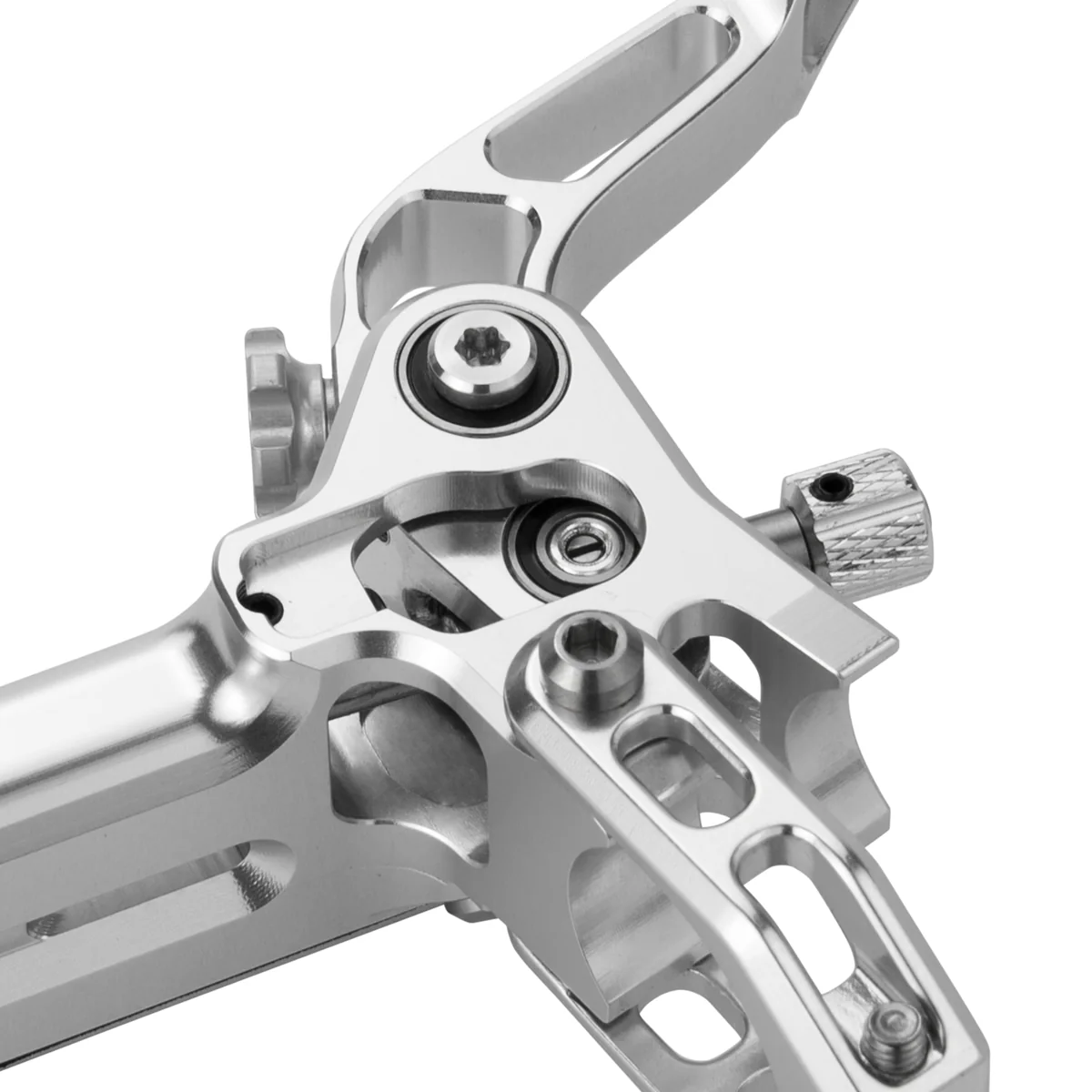

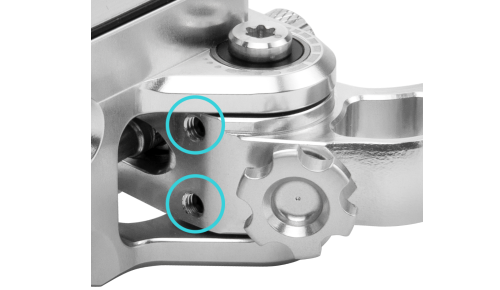

Leverage Ratio Adjustment
Loosen the lever ratio set screws and adjust the Lever ratio by turning the lever ratio adjustment knob.
Tighten the set screws after adjustments.

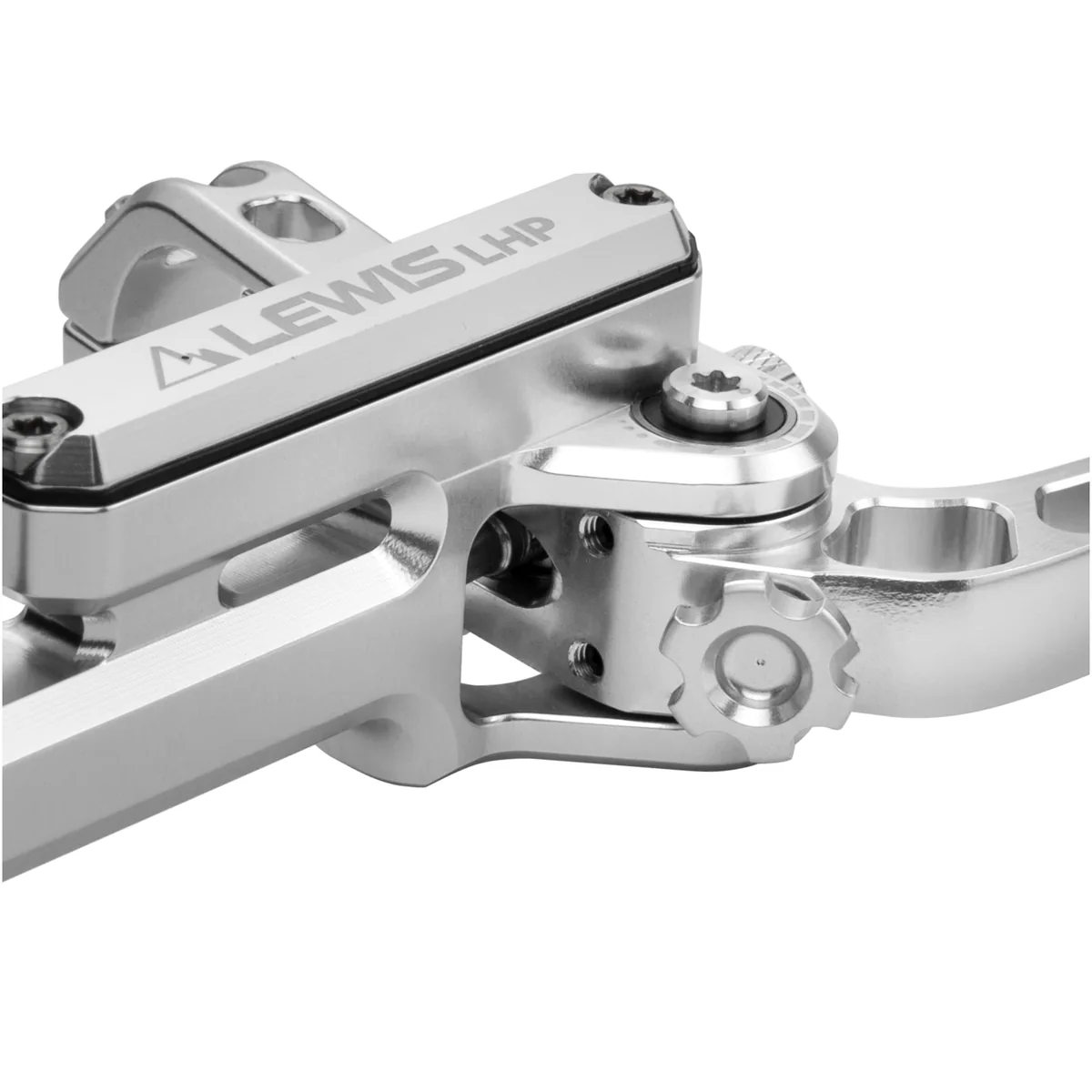

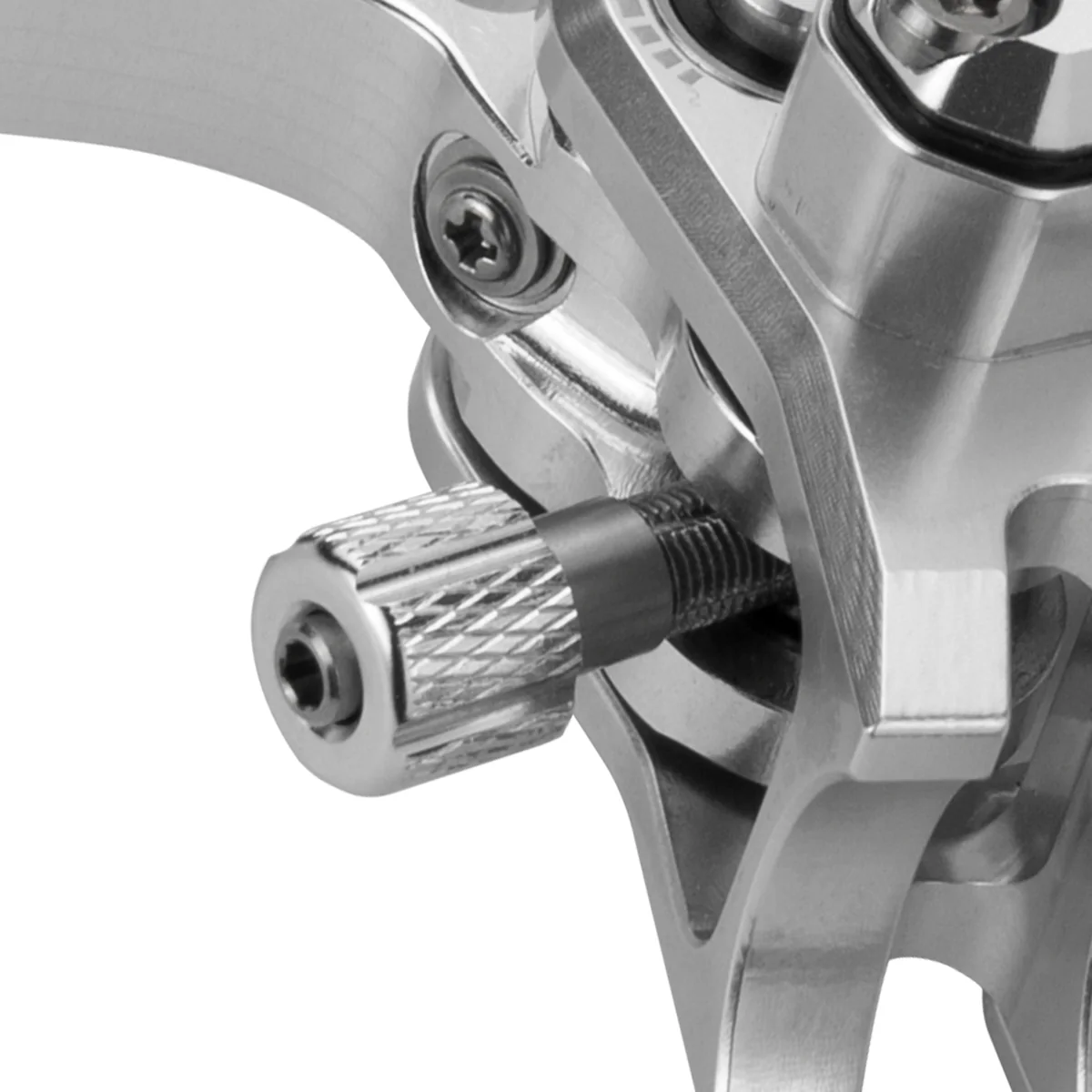

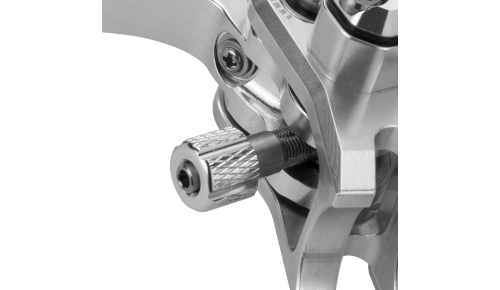

Dual Adjustment Of Lever Reach & Bite Point
The LHP lever features a patented technology for dual adjustment of Lever reach & bite point, combined with a new lever ratio adjustment system, for an incredible range and freedom of adjustment.

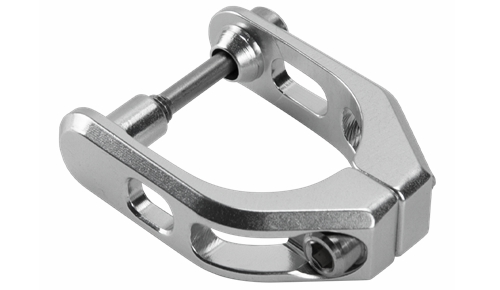

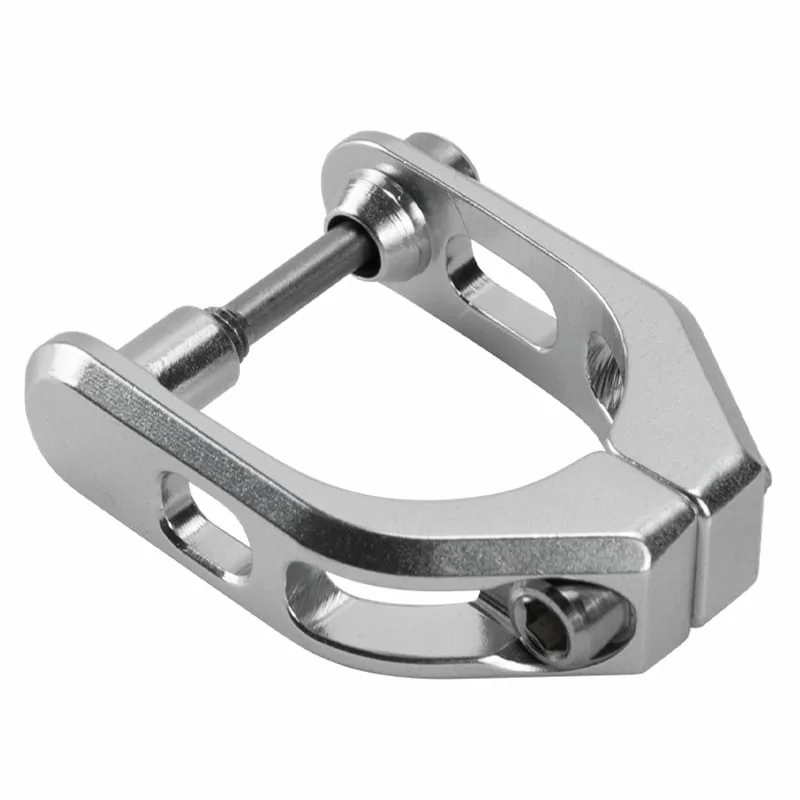

Standard Split Clamp With Upper And Lower Locking Design
Standard Split clamp with upper and lower locking design improves the fault-tolerant of clamp installation and meets the requirements of handlebar designs with different tolerances.
Torque: 3Nm

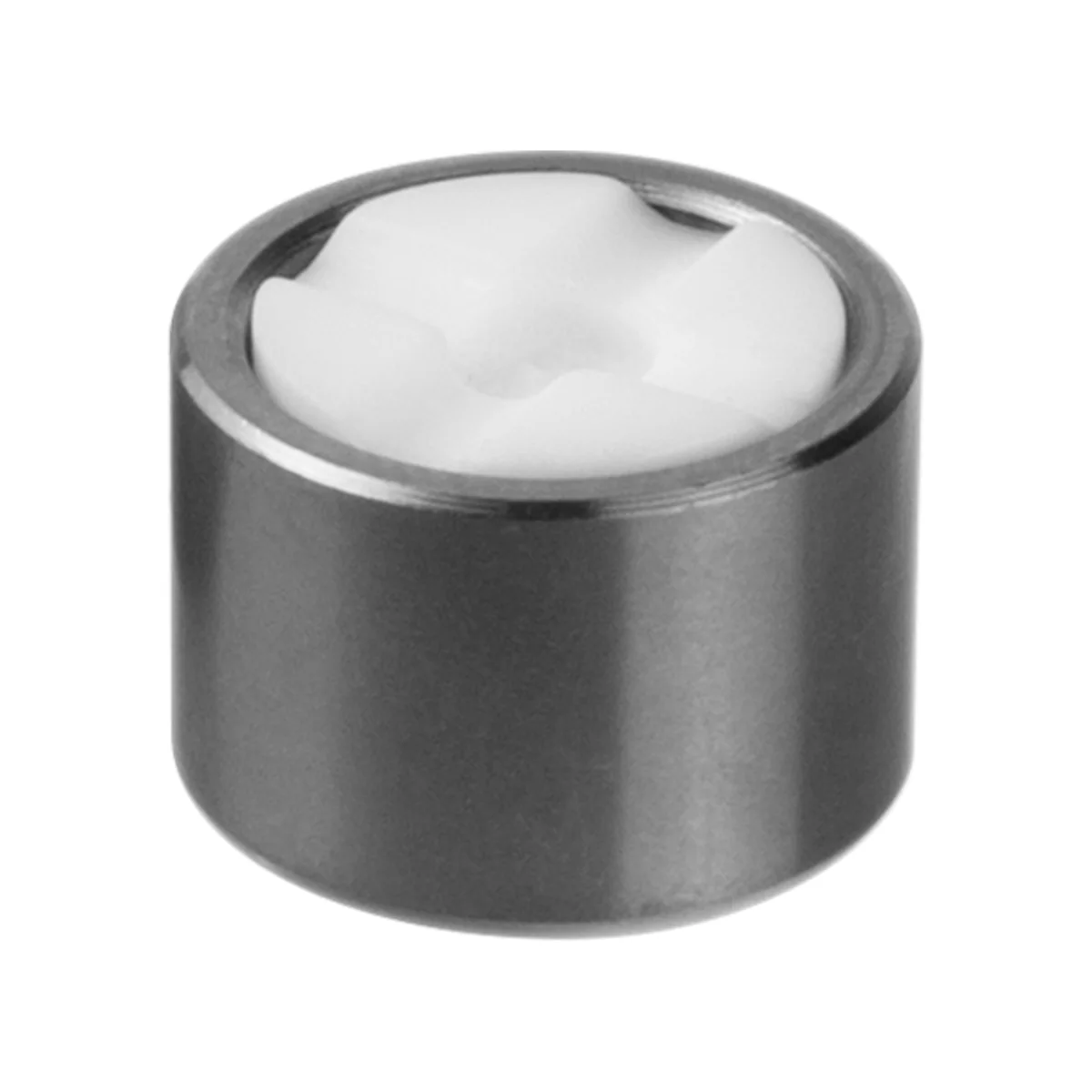

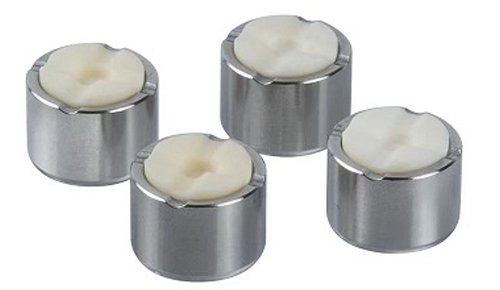

Stainless steel Pistons
2x14mm, 2x17mm Stainless steel Piston with Insulation Layer

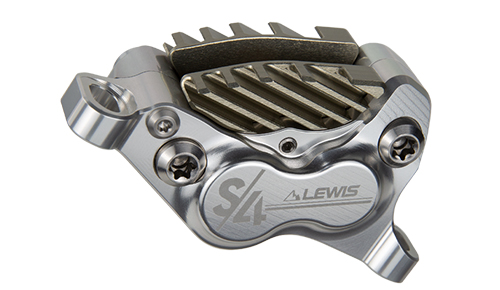

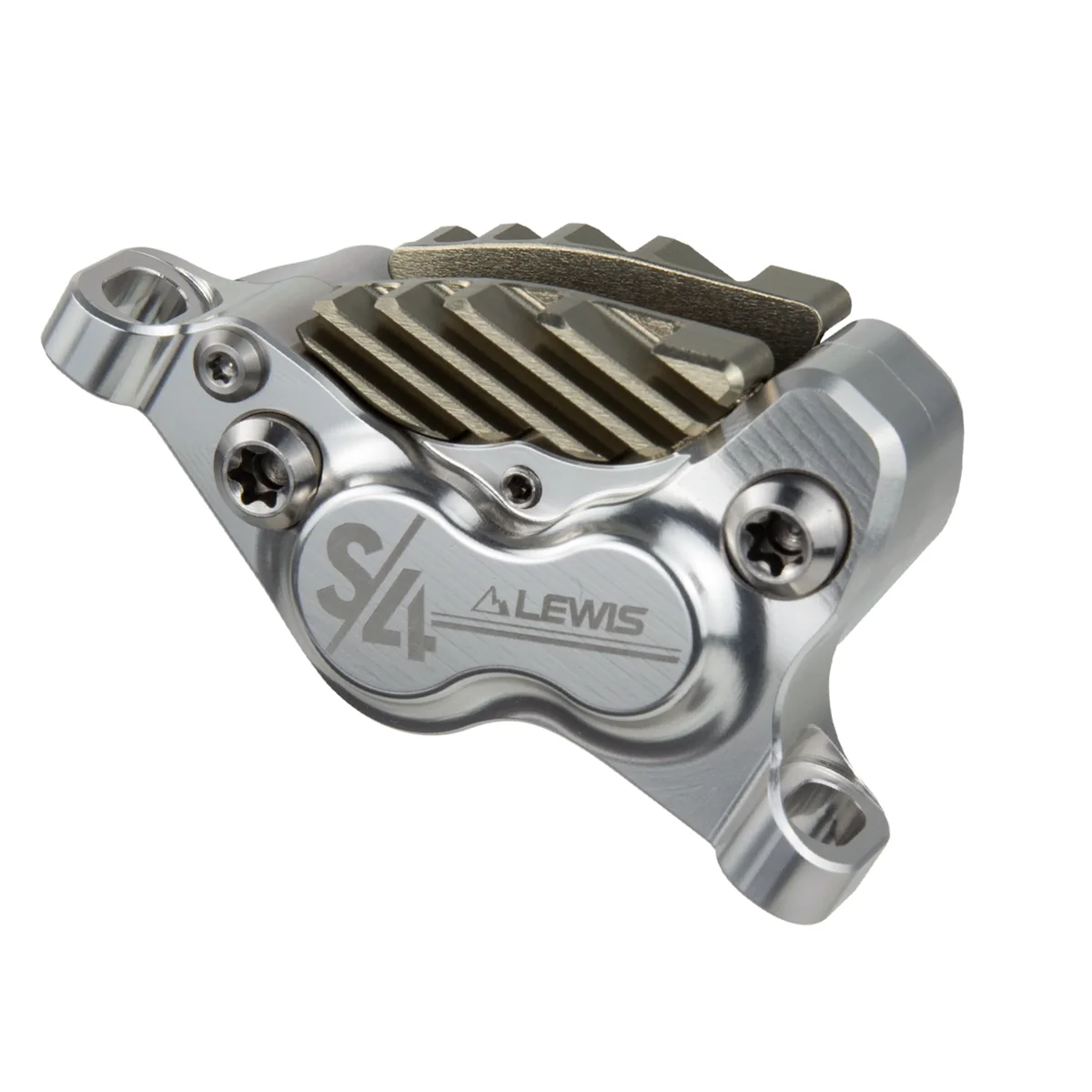

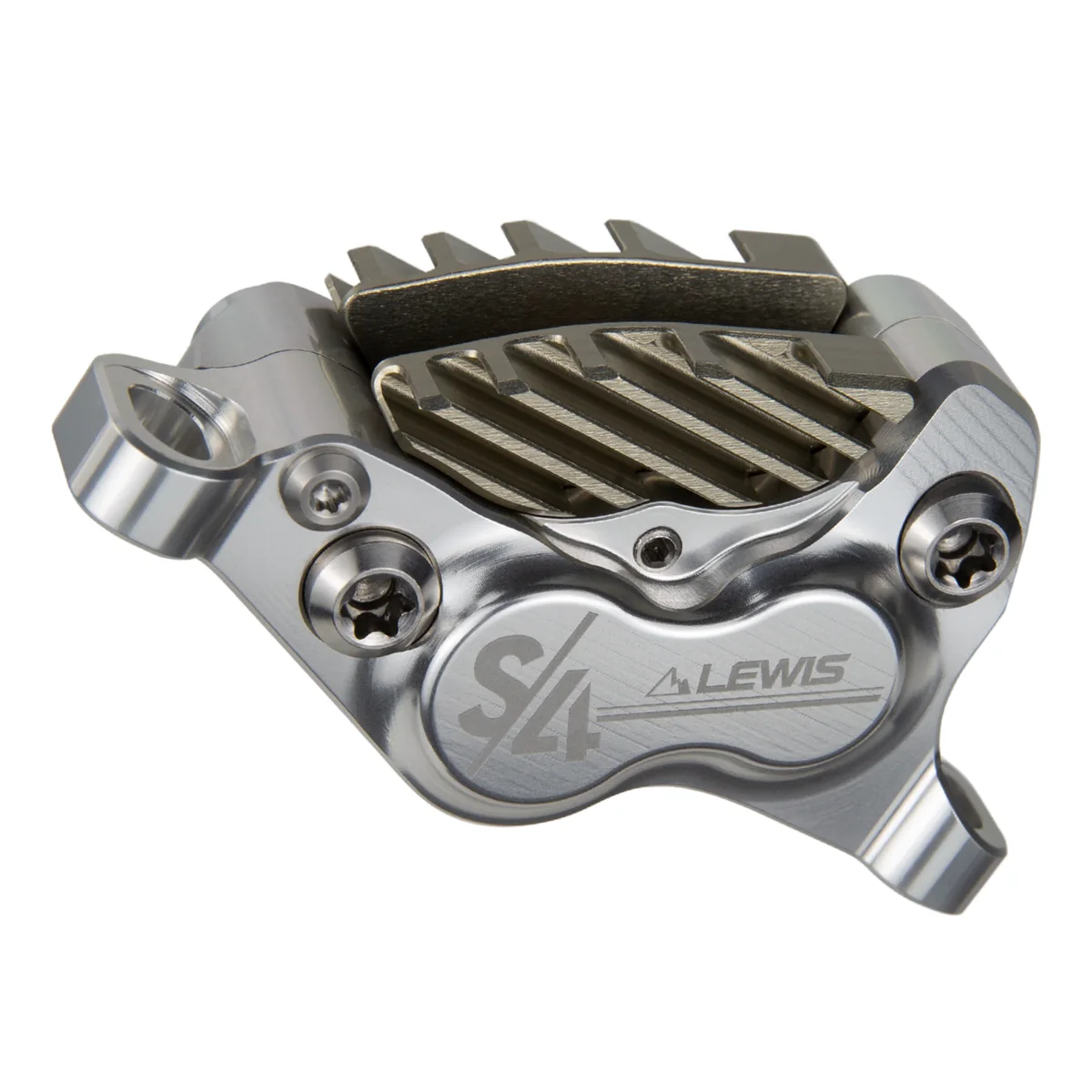

Independent Cooling Fins
Cooling Fins for better heat dissipation performance
Specifications

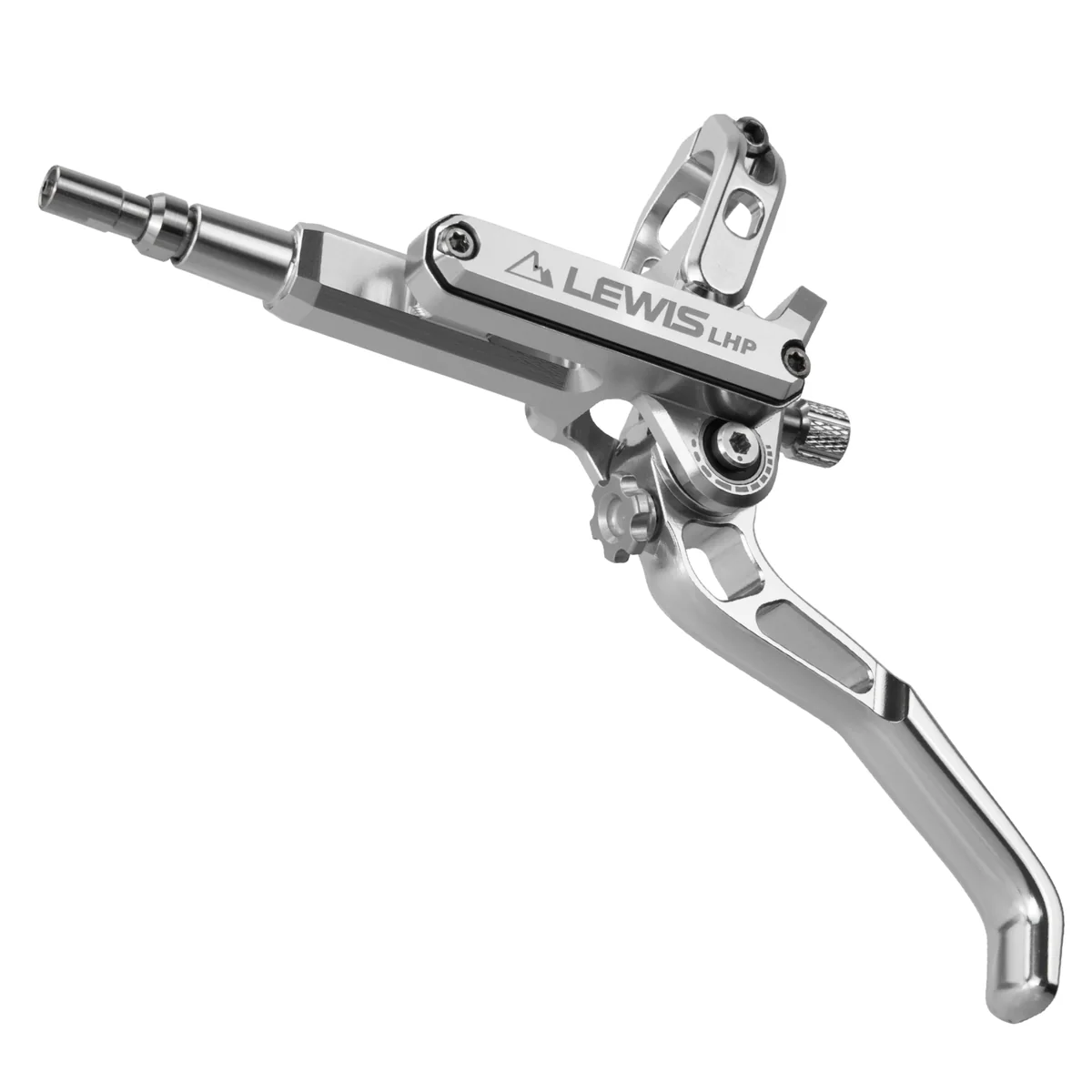

| MASTER CYLINDER | |
| Type | Axial |
| Material | CNC 7075T6 Aluminum |
| Body Finish | Black, Silver |
| Clamp Color | Black, Silver |
| Clamp Type | Split |
| Screws | Stainless Steel |
| Adjustable Lever Reach | YES, Tool Free |
| Adjustable Pad Bite Point | Yes, with 2mm Allen key |
| Adjustable Leverage Ratio | 1.5mm Allen Key to loosen the set screws first |
| LEVER BLADE | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver |
| Brake lever version | 1 Finger |
| CALIPER | |
| Material | CNC 7075T6 Aluminum |
| Color | Black, Silver |
| MOUNT TYPE | Post mount |
| Piston | 2x14mm, 2x17mm Stainless steel Pistons |
| Screws | Stainless Steel |
| Pads type | Sintered TP-37 and Semi-Metallic LP-37 |
| Hose | |
| Hose size | Outside Diameter 5mm，Bore 2.2mm |
| Hose length | 90cm front /160 cm rear |
| Hose finish | Black, Braided T200 Oil Hose |
| INTENDED USE | Enduro, Downhill, All-Mountain |
| Rotors | Not included, optional (140 mm | 160 mm | 180 mm | 203 mm | 223 mm) Recommending PureTrek 2.3mm rotors or other brands of 2.0mm -2.5mm thick rotors |
| Adapter | Not included |
| WEIGHT | Lever 98g, Caliper 151g (without brake pads) |
| Oil | Mineral oil |
| Bleed Kit Recommendation | PureTrek Bleeding Kit |
