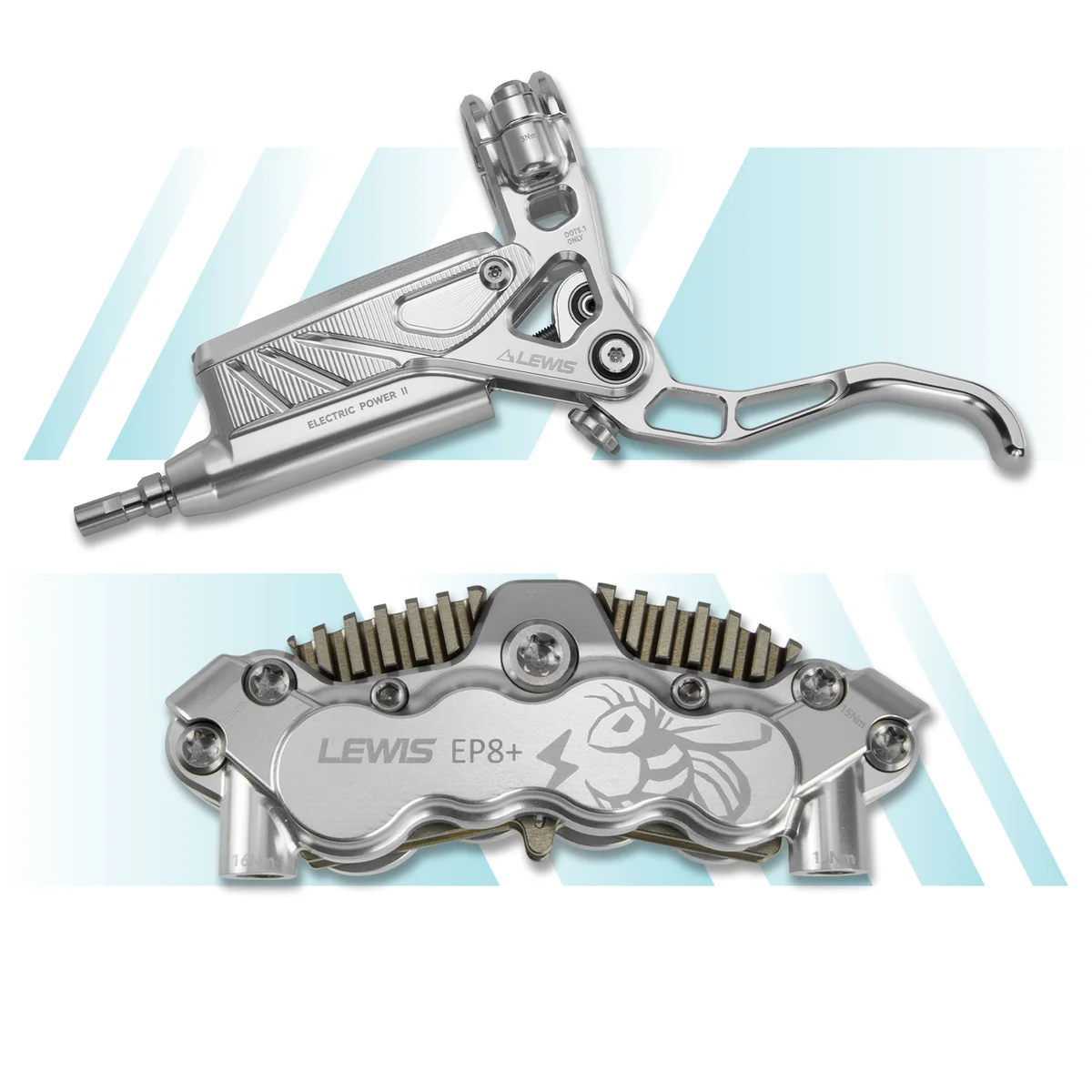

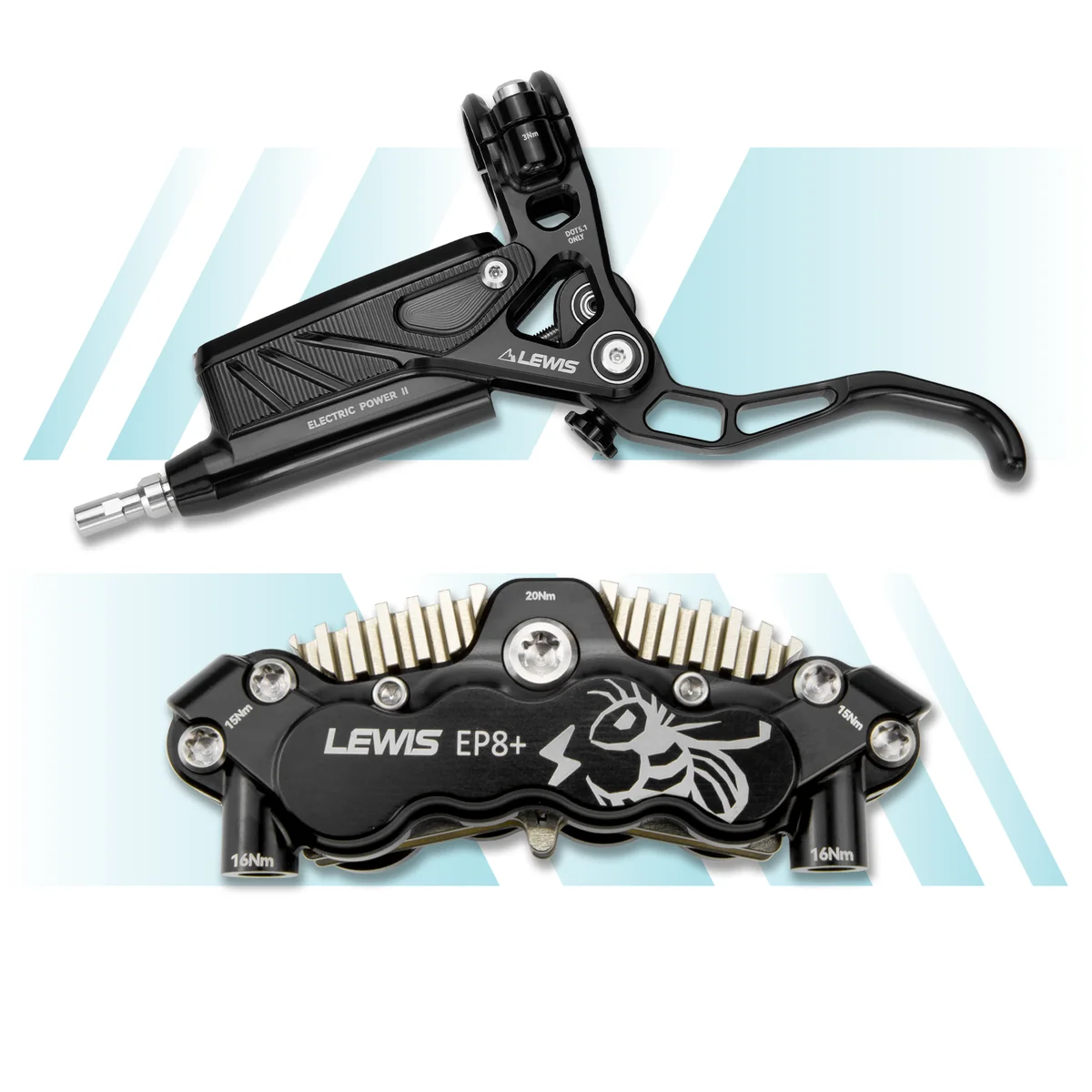

PureTrek EP8-II Axial Cylinder 8 Pistons Hydraulic Disc Brake for Surron Light Bee
-
Estimated Delivery:Oct 20 - Oct 24
-
Free Shipping & Returns: On all orders over $75

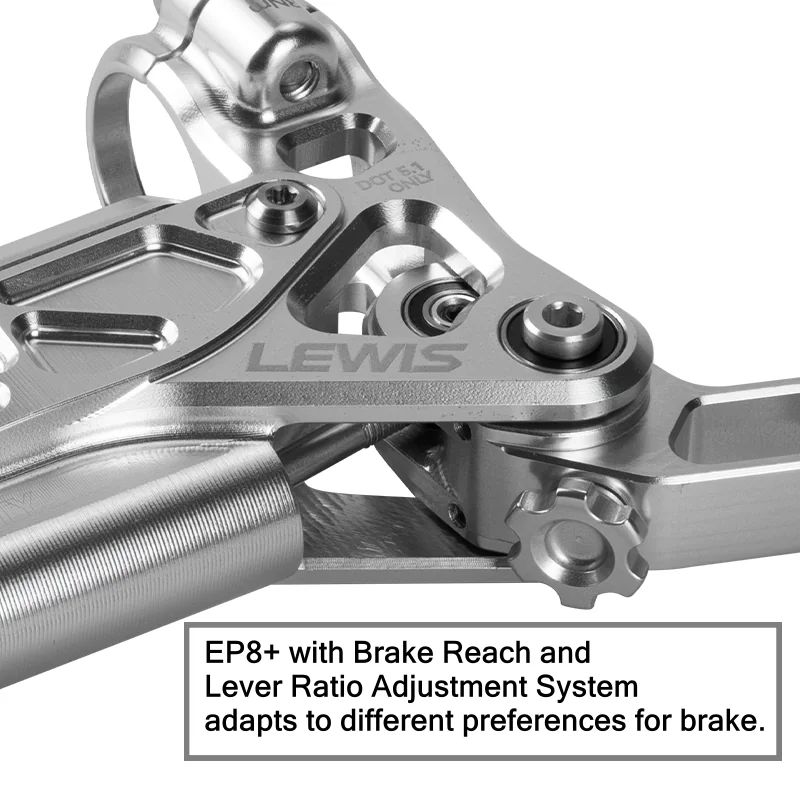

EP8-II with Lever Reach and Leverage Ratio Adjustment System adapts to different preferences for brake.

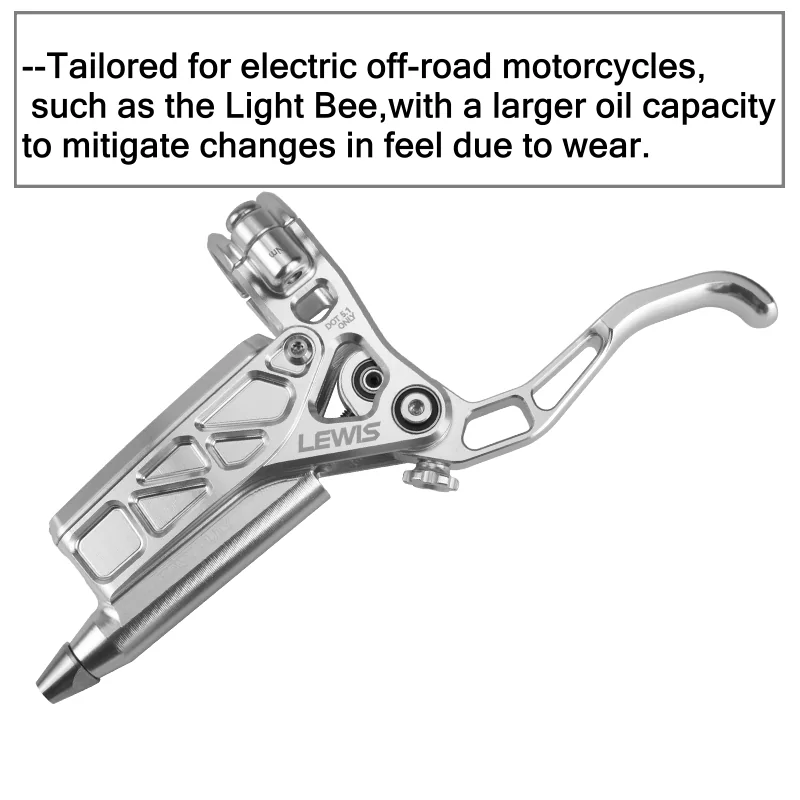

Tailored for electric off-road motorcycles, such as Surron Light Bee, with a larger oil capacity to mitigate changes in feel due to wear.

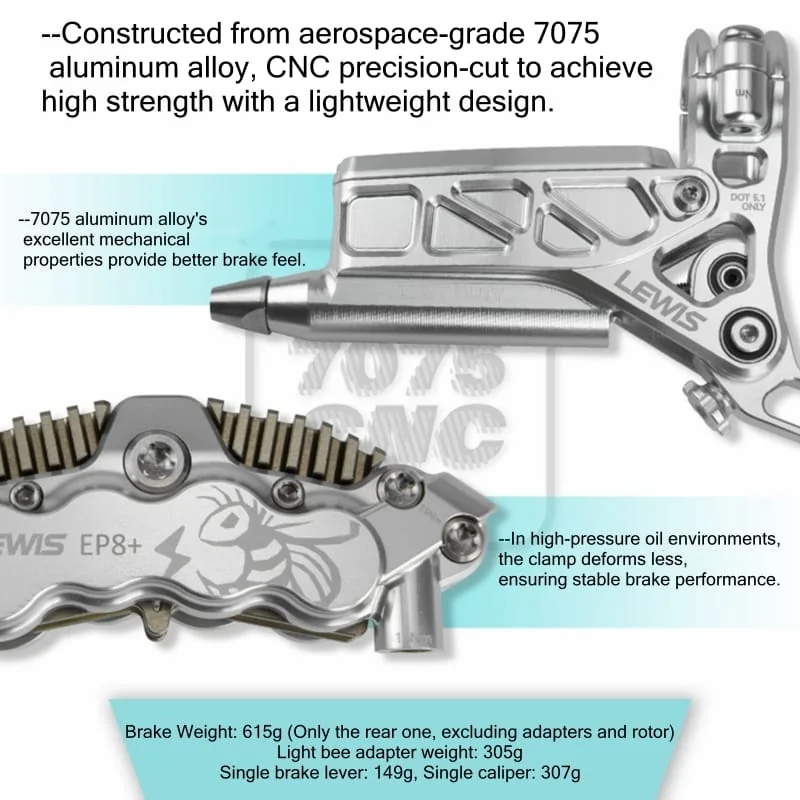

CNC Machine Cut 7075-T6 Aluminum, High precision and Rigid

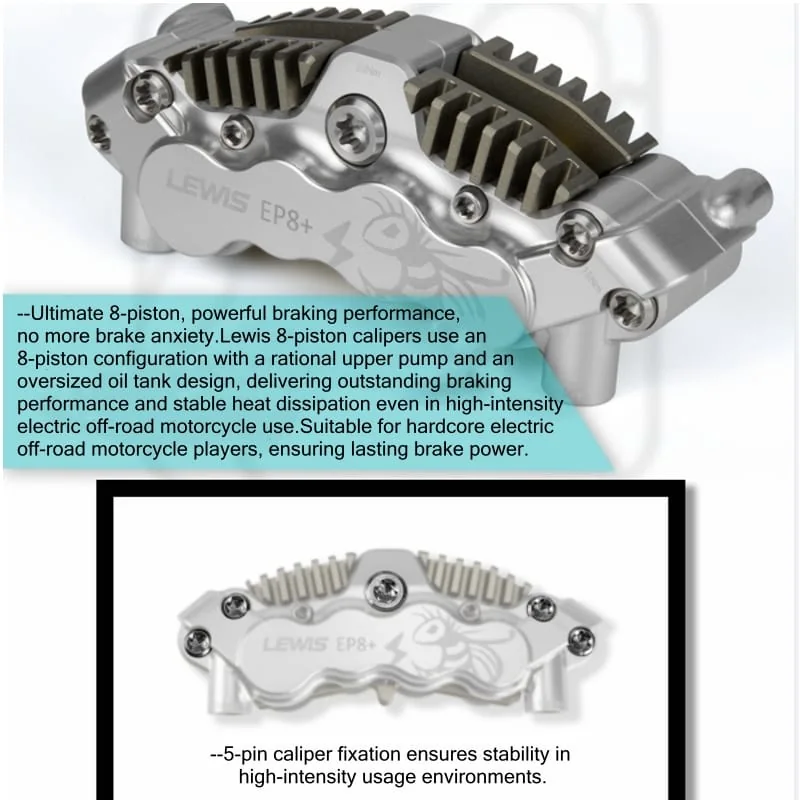

Ultimate 8-piston, powerful braking performance, no more brake anxiety.
Independent cooling fins design for better high temperature performance.

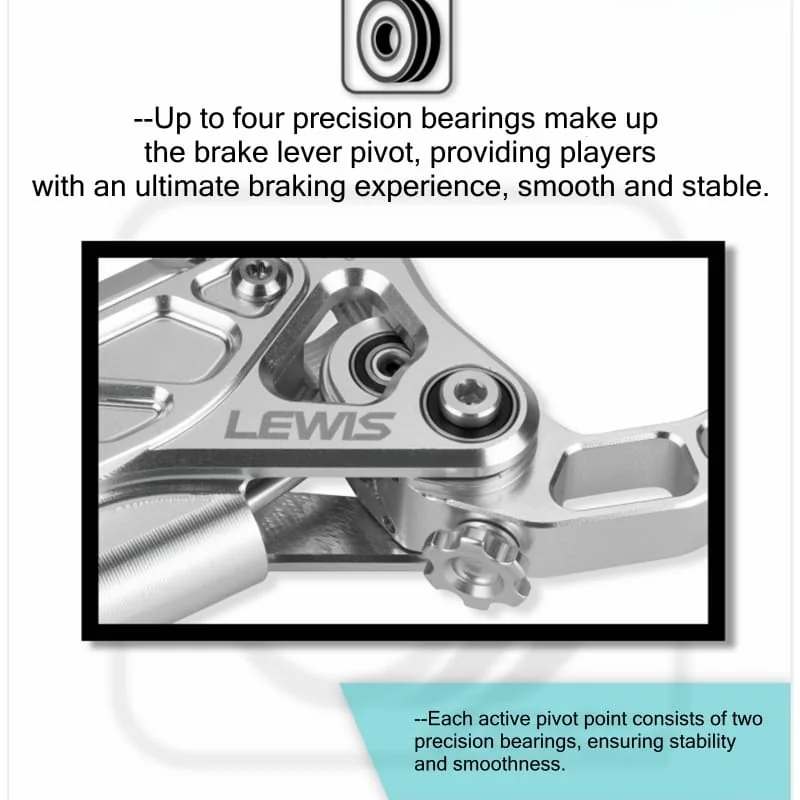

Up to four precision bearings constitute each brake lever pivot, providing riders with an unparalleled braking experience characterized by stability and smoothness.
Fluid: DOT 5.1 (Large oil reservoir design)
Weight: Cylinder 149g, Caliper 307g
Piston: 8 pistons (4x14mm+4x17mm)
Rear Brake weight = 615g(Oil Hose included), 456g without Oil Hose
Adapters for Lightbee = 305g
Technology

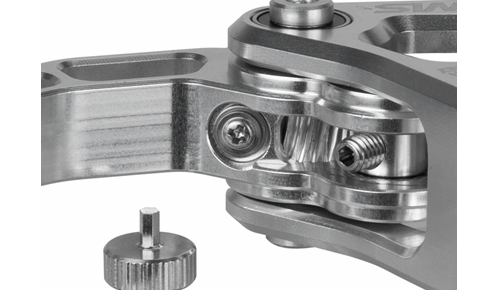

Lever Reach Adjustment
Use a 2mm Allen Key to customize Lever reach.

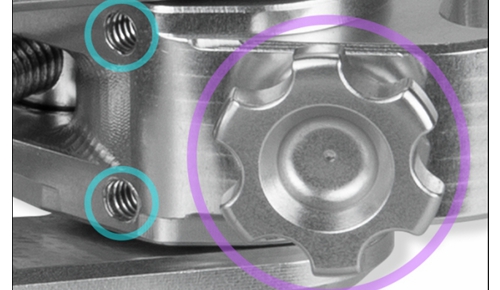

Leverage Ratio Adjustment
Loosen the Leverage Ratio Fixed Screw and fine-tune the brake feel by turning the Lever Ratio Adjustment Knob.

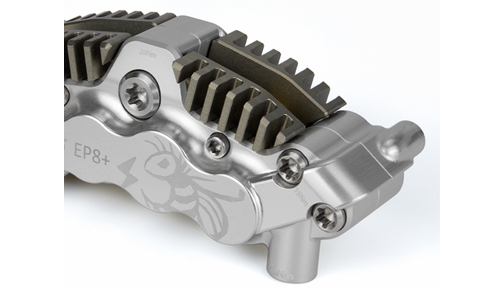

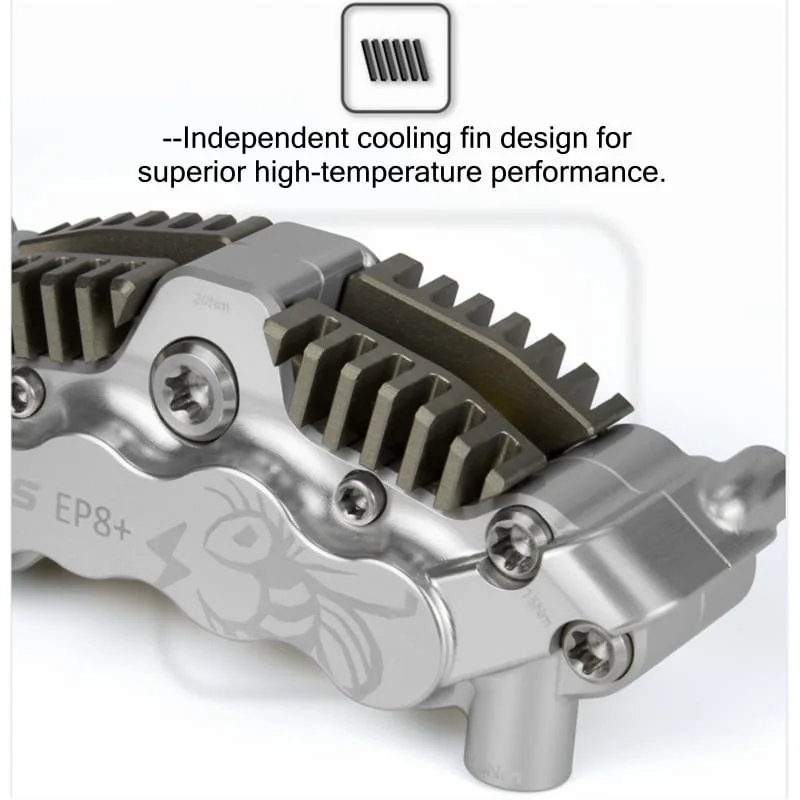

Independent Cooling Fin Design
Independent cooling fin design enhances high-temperature performance.

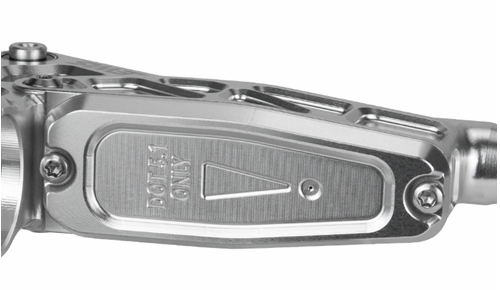

Large-volume oil Reservior
Large-volume oil reservior, reduces maintenance frequency.Utilizes DOT 5.1 brake fluid for superior high-temperature performance.

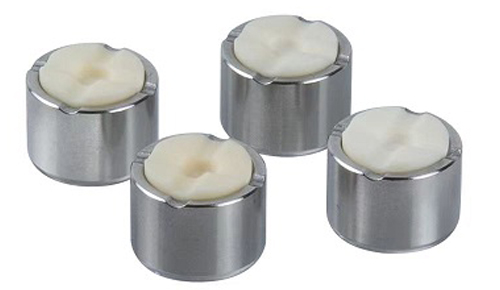

Stainless steel Pistons with insulation layers
Stainless steel Pistons with insulation layers to manage high temperature

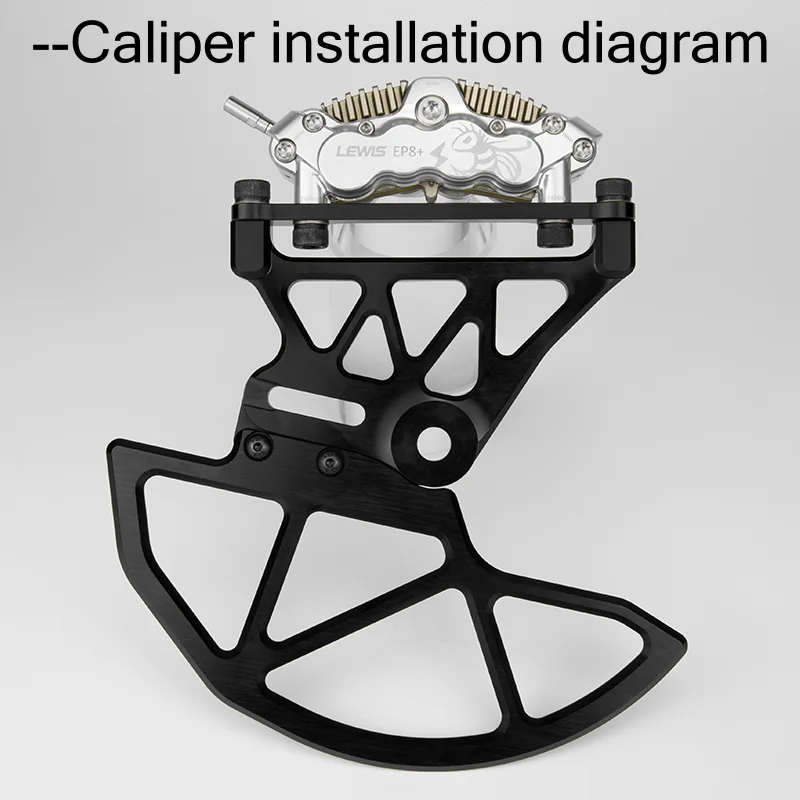

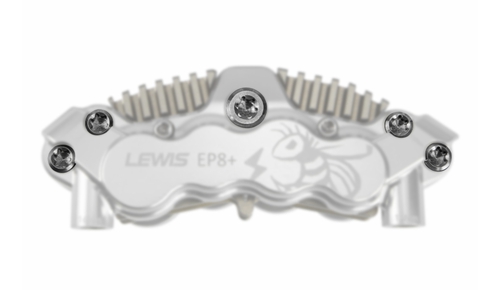

5-Bolts Caliper Fixation
5-Bolts caliper fixation ensures stability in demanding scenarios.

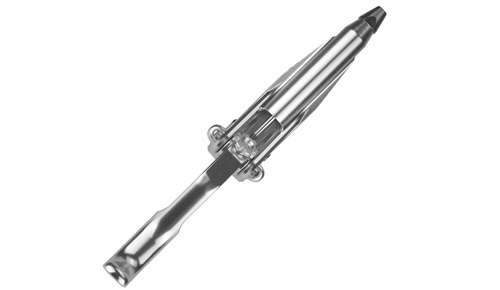

Ambidextrous Brake Lever
Left and right-hand universal design accommodates different brake installation preferences.

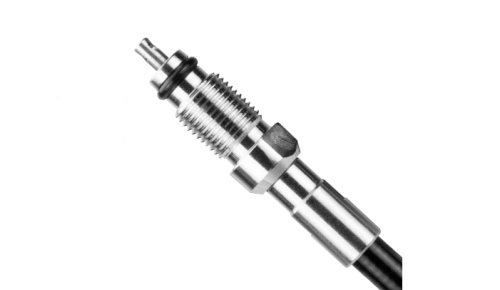

Anti-Leak Oil System
Detachable Olive Head used in Anti-leak System makes it easier for the rider to disassemble the brake hose.

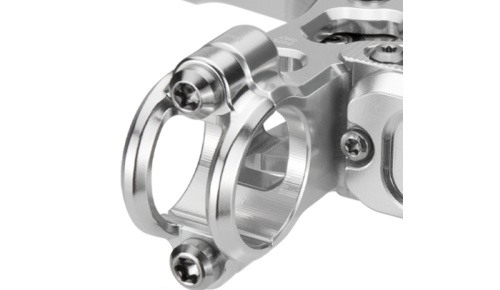

New Clamp Design
New clamp design for higher strength and easier installation.

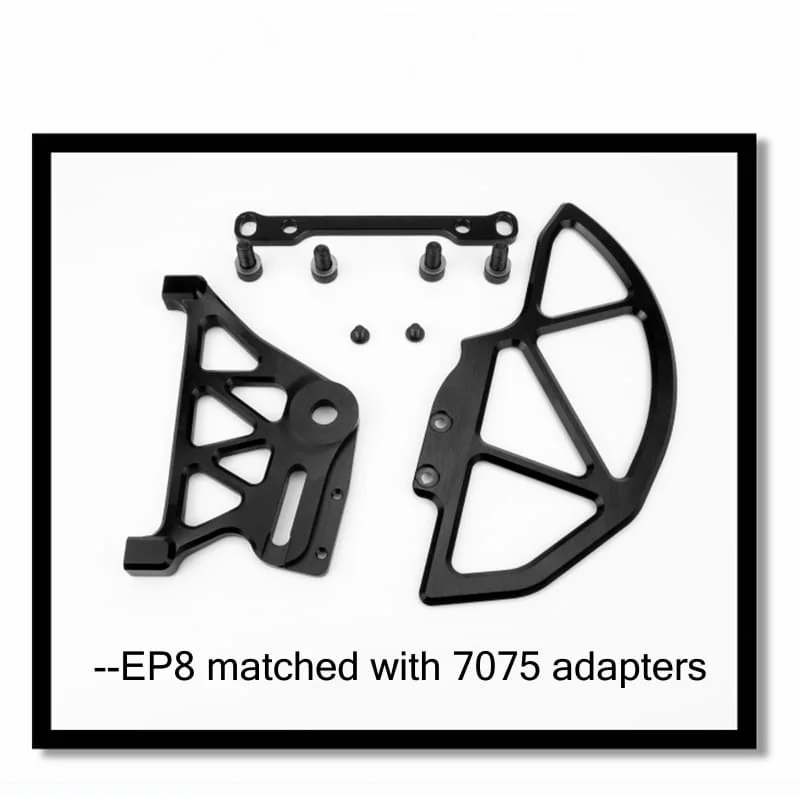

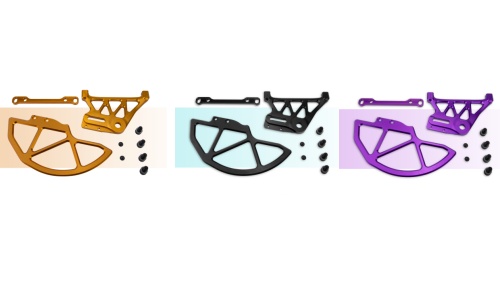

Adapter&Bracket available in multiple colors
Fits Talaria & Surron bikes
Specifications
| MASTER CYLINDER | |
| Type | Axial |
| Material | CNC 7075T6 Aluminum |
| Color | Black, Silver |
| Clamp Type | Split |
| Screws | Stainless Steel |
| LEVER RATIO ADJUSTMENT SYSTEM | YES, Tool Free |
| LEVER REACH ADJUSTMENT | Yes, with a provided 2mm Allen key |
| LEVER BLADE | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver |
| CALIPER | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver, Black & Silver, customized colors |
| MOUNT TYPE | Post mount |
| Piston | 4 x 17mm+4x14mm Stainless Steel + Insulation Layers |
| Screws | Stainless steel |

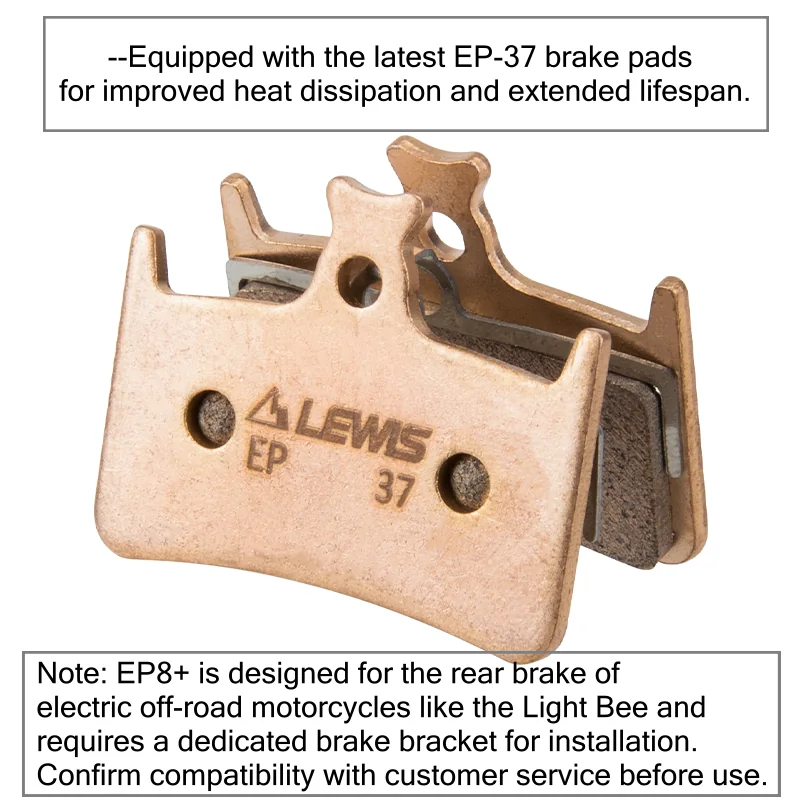

| Brake Pads | Metallic EP-37 |
| Hose | K28 Black braided Oil hose |
| Hose size | Outside Diameter 5mm，Bore 2.2mm |
| Hose length | 165 cm rear |
| Hose finish | Black, Braided |
| INTENDED USE | Surron Light Bee E-motorcycle |
| Rotors | HD220-54 : 3mmx220mm Rotor (Aperture: 54mm) |

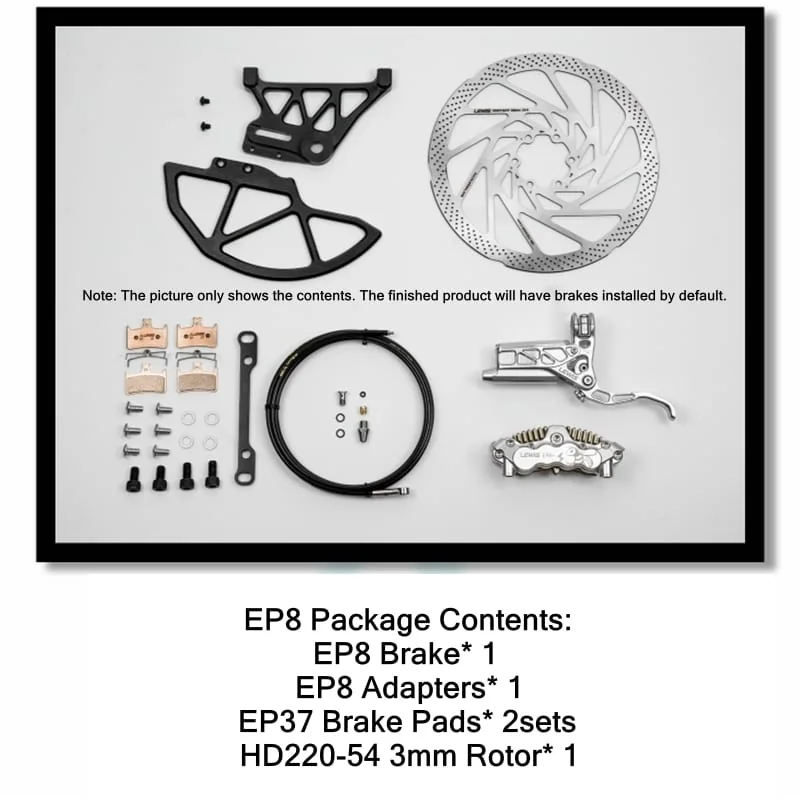

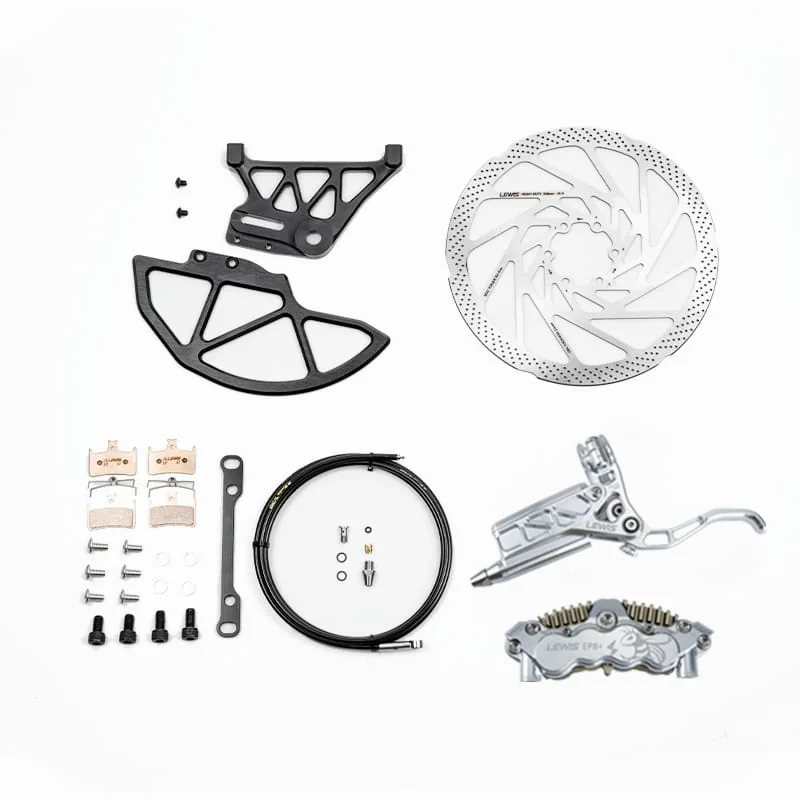

| Adapter & Rotor Guard | Included |
| WEIGHT | Master Cylinder 149g, Caliper 307g |
| Oil | DOT 5.1(Large oil reservoir design) |
| Bleed Kit Recommendation | EZMTB 2022std |
