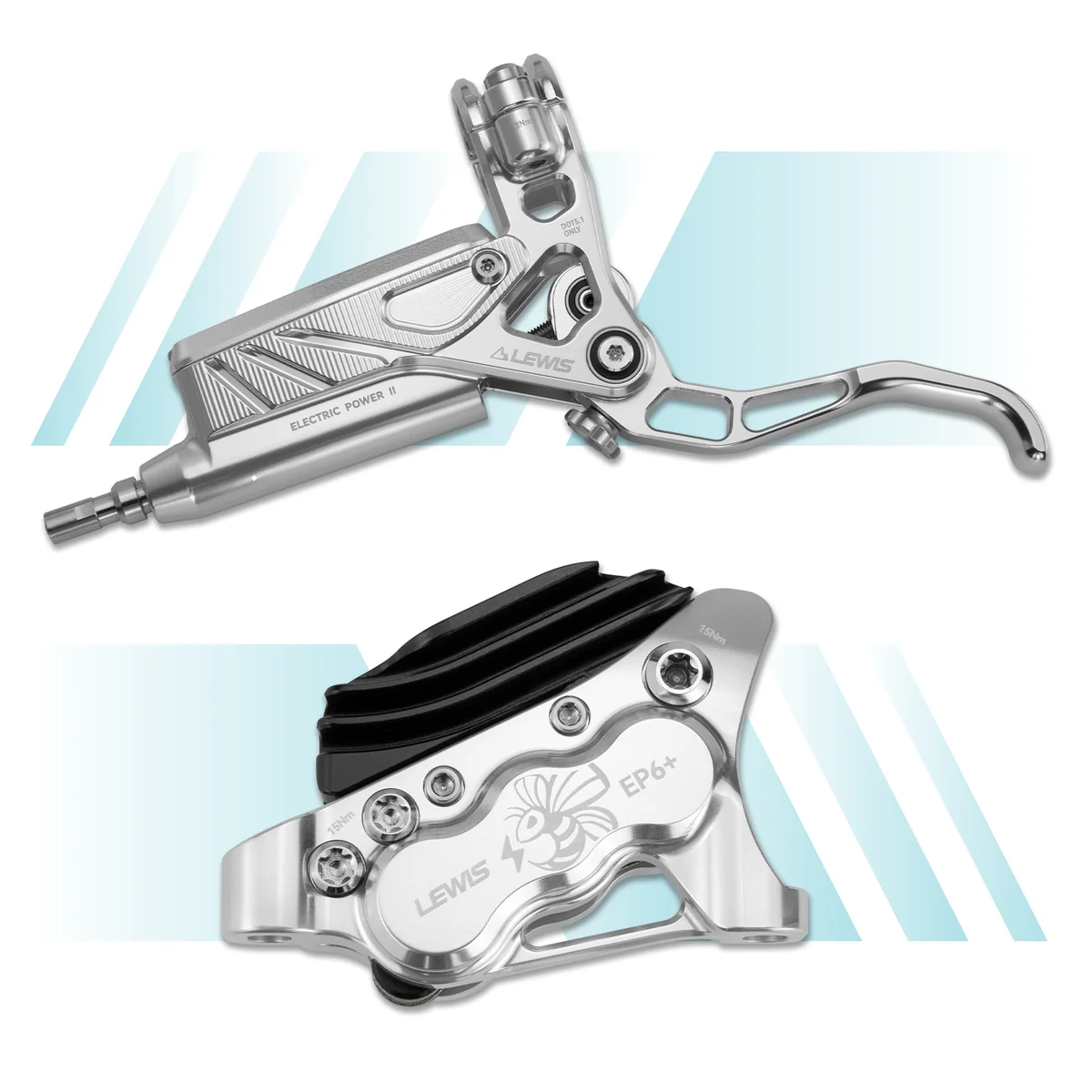

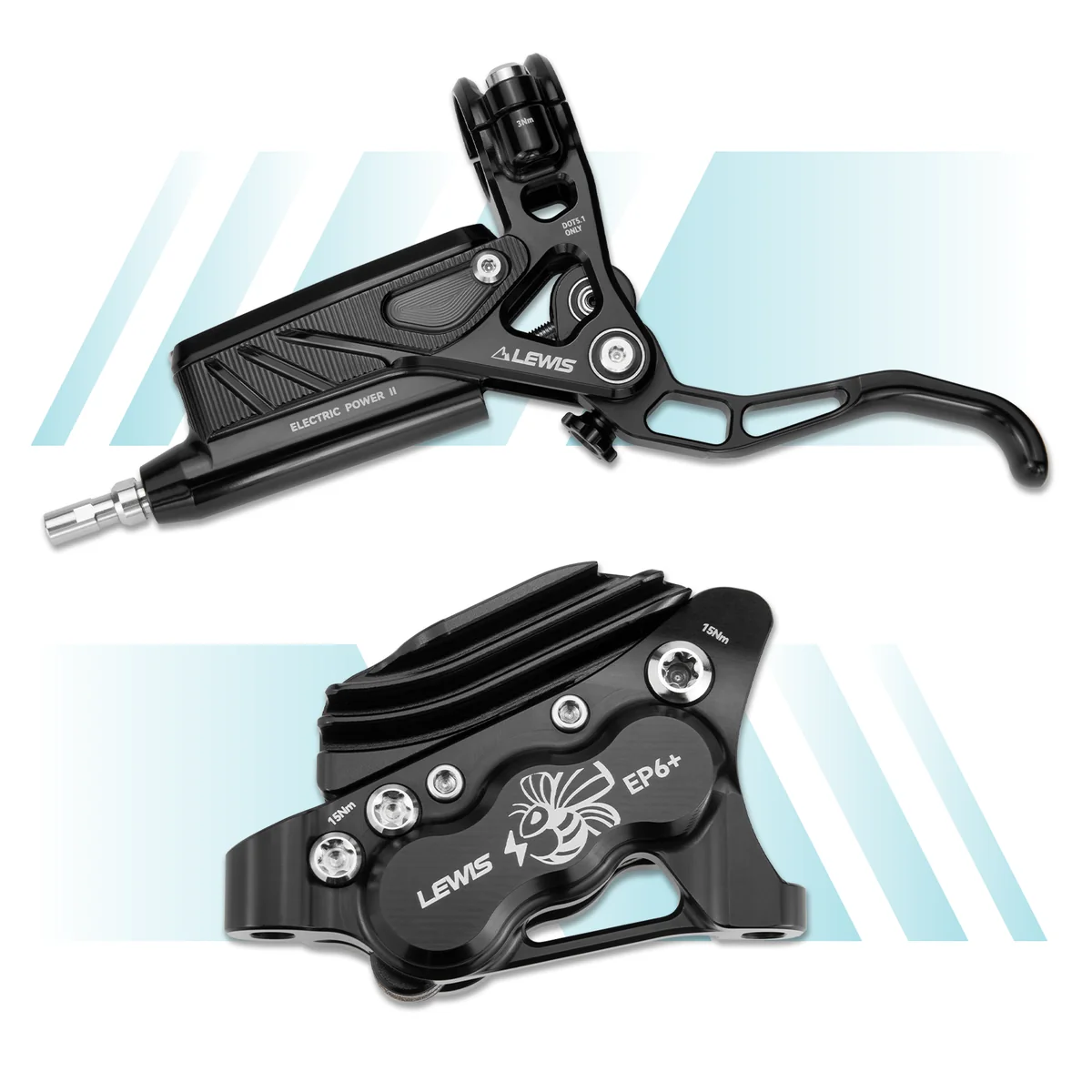

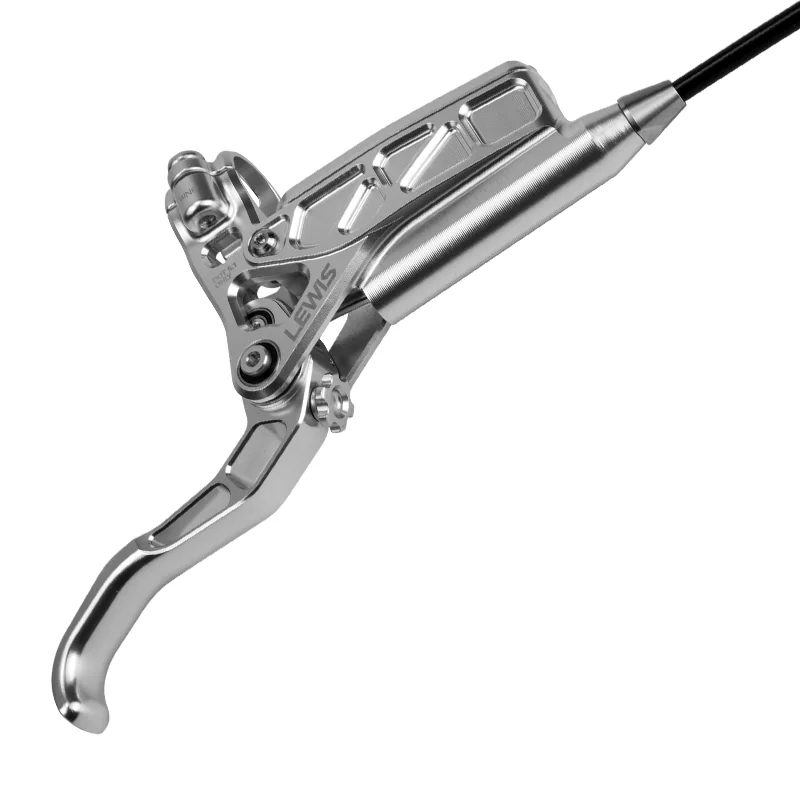

PureTrek EP6-II Axial Cylinder 6 Pistons Hydraulic Disc Brake for EMTB & E-motorcycle
-
Estimated Delivery:Oct 20 - Oct 24
-
Free Shipping & Returns: On all orders over $75

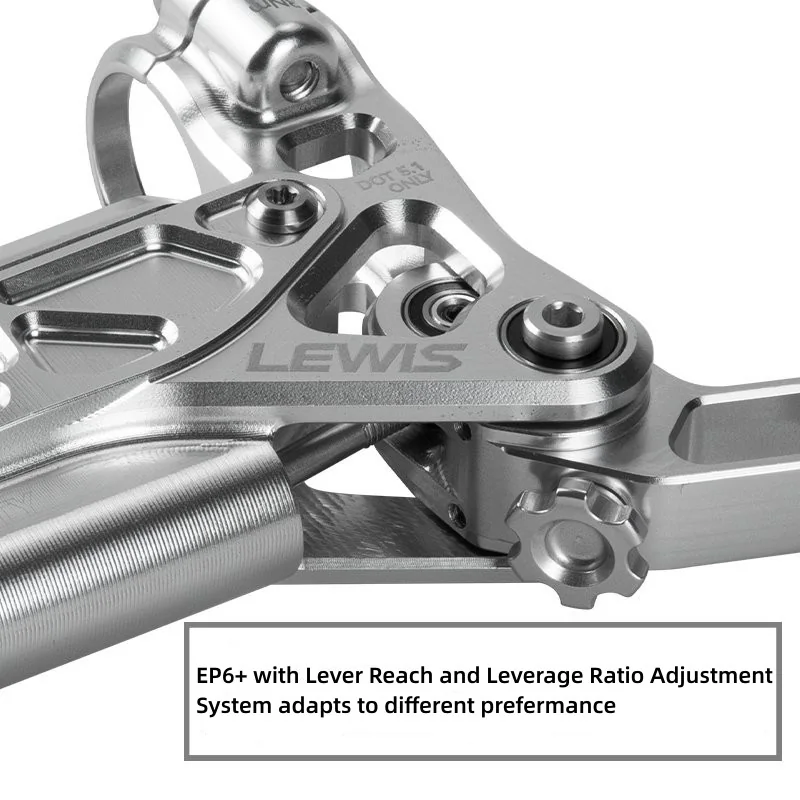

EP6-II with Lever Reach and Leverage Ratio Adjustment System adapts to different preferences for brake.
Tailored for EMTB and electric off-road motorcycles, with a larger oil capacity to mitigate changes in feel due to wear.
CNC Machine Cut 7075-T6 Alumnium, High Precisoin and Rigid
Ultimate 6-piston, powerful braking performance, no more brake anxiety.
Independent cooling fins design for better high temperature performance.
Up to four precision bearings constitute each brake lever pivot, providing riders with an unparalleled braking experience characterized by stability and smoothness.
Fluid: DOT 5.1 (Large oil reservoir design)
Weight: Cylinder 149g, Caliper 260g
Piston: 6 pistons (4x14mm+2x17mm)
Rear Brake weight = 568g(Oil Hose included).
Technology

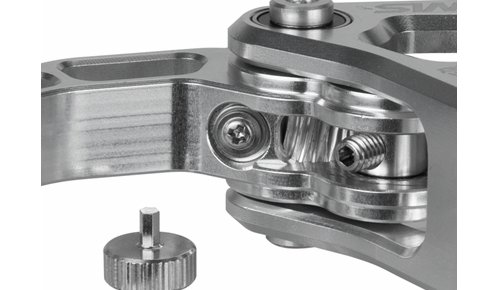

Lever Reach Adjustment
Use a 2mm Allen Key to customize Lever reach.

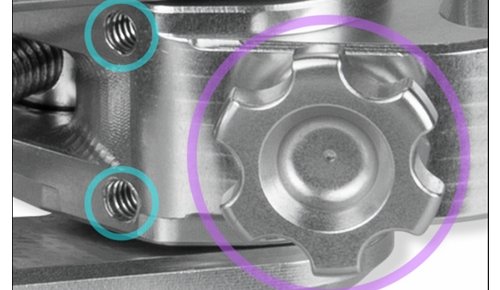

Leverage Ratio Adjustment
Loosen the Leverage Ratio Fixed Screw and fine-tune the brake feel by turning the Lever Ratio Adjustment Knob.

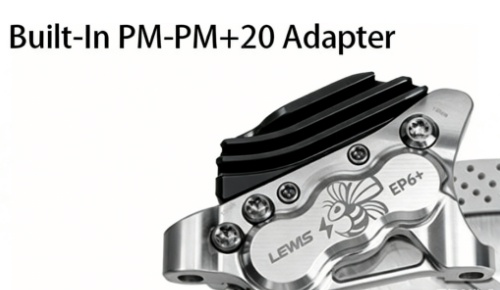

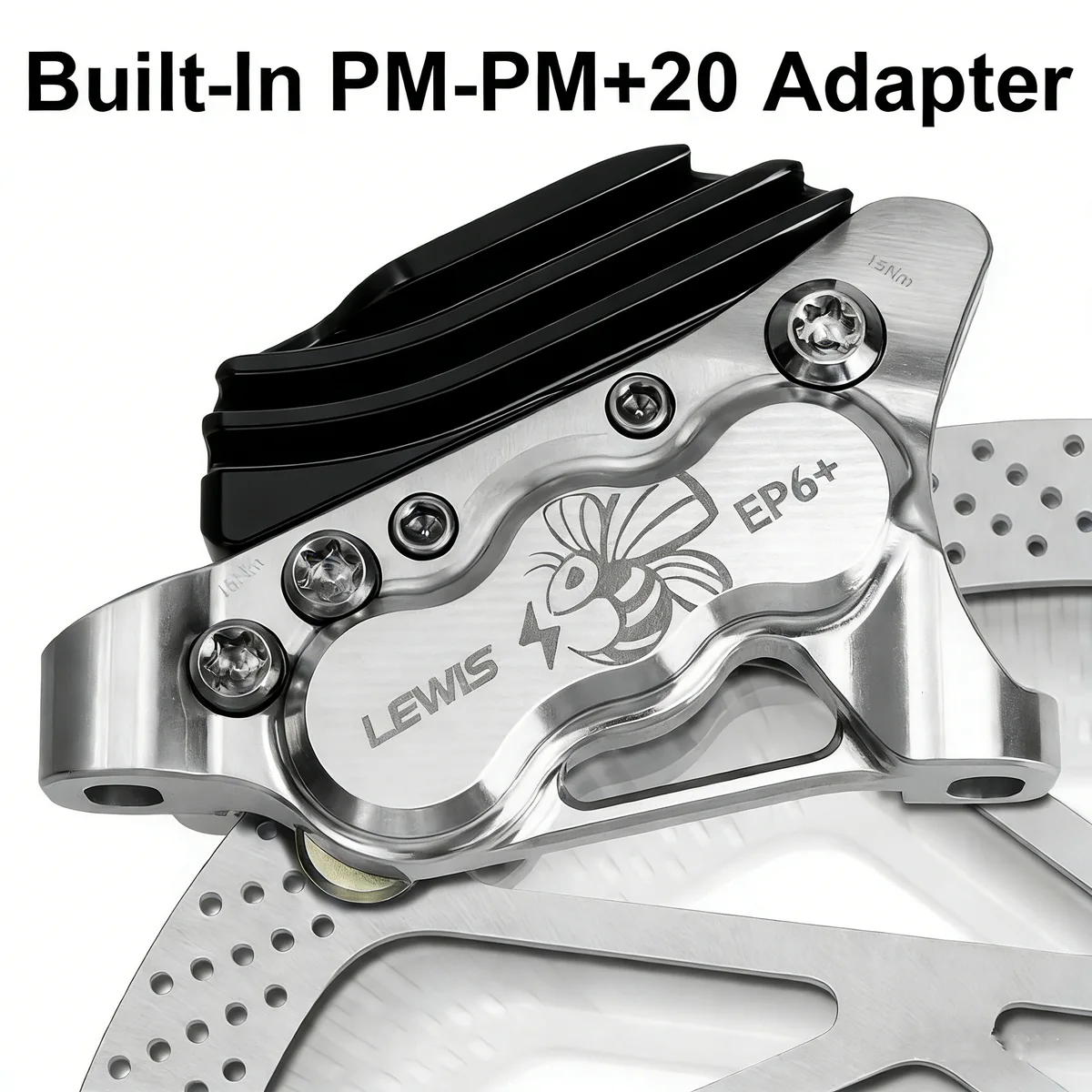

Built-In PM-PM+20 Adapter on the Caliper
Use the correct size Disc Rotors with the EP6+ Brakes

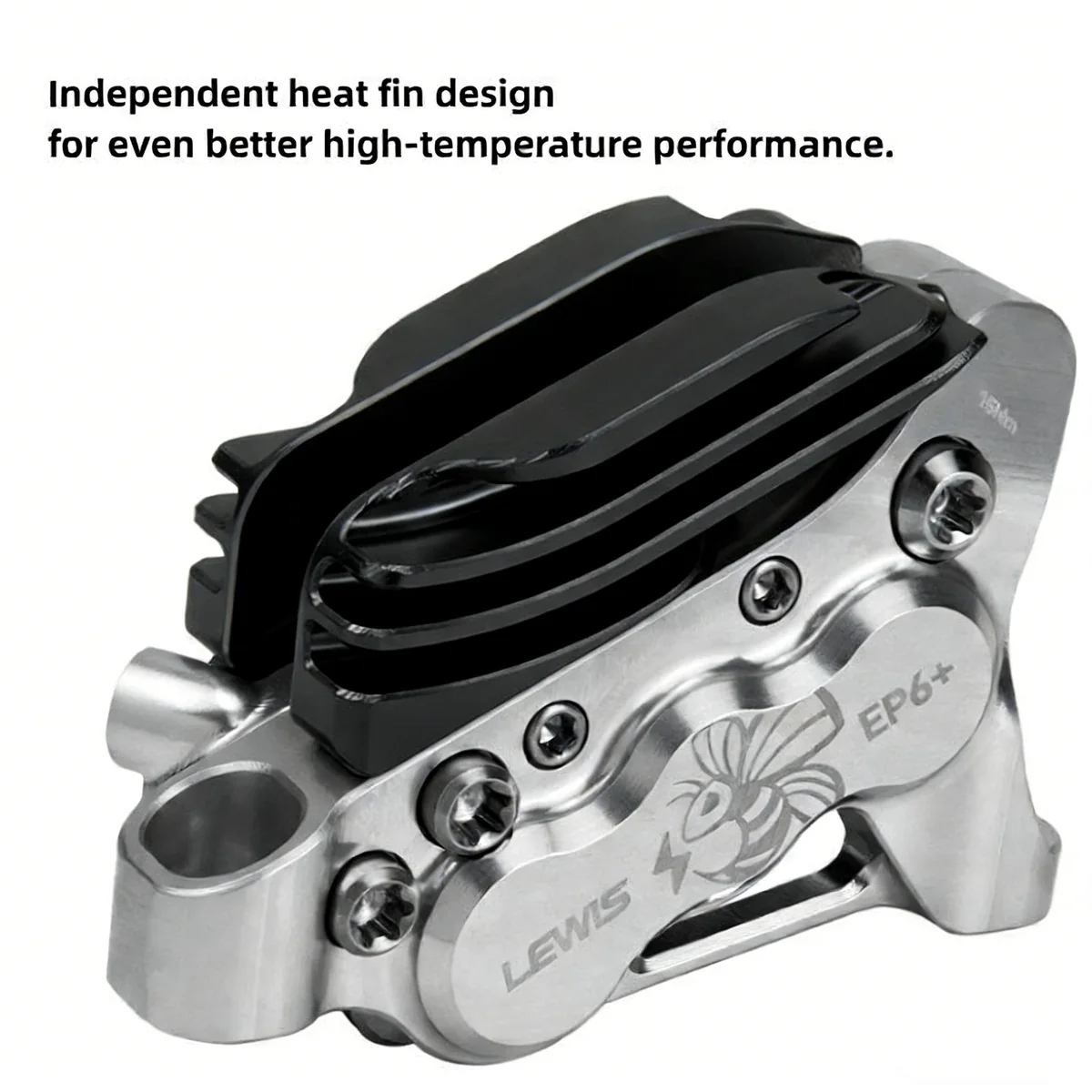

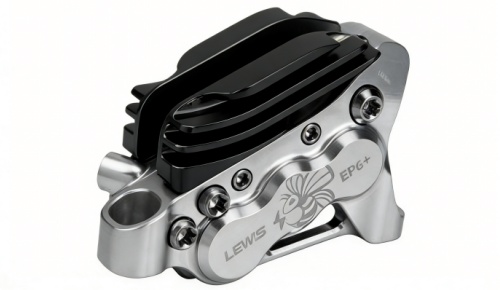

Independent Cooling Fin Design
Independent heat fin design for even better high-temperature performance.

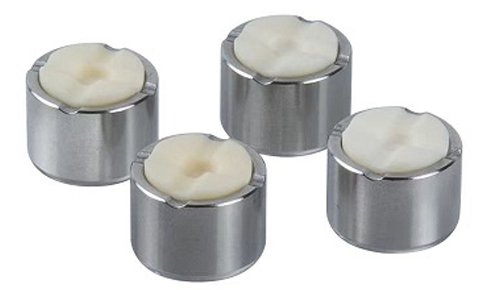

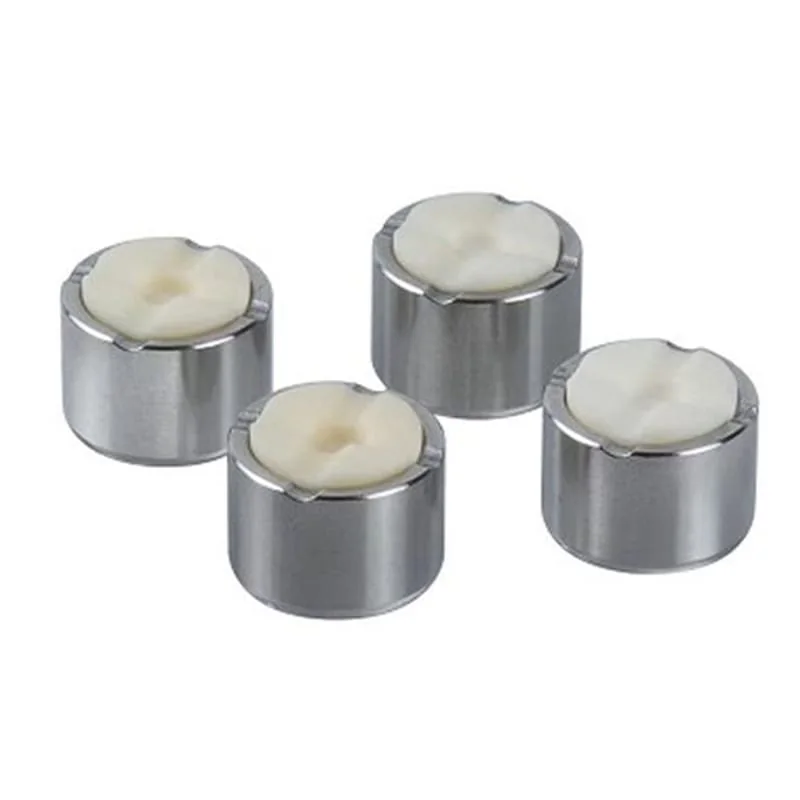

6 Pistons with ceramic insulation layers
The piston is equipped with TITAN ceramic heat insulation layers, providing a more stable braking performance.

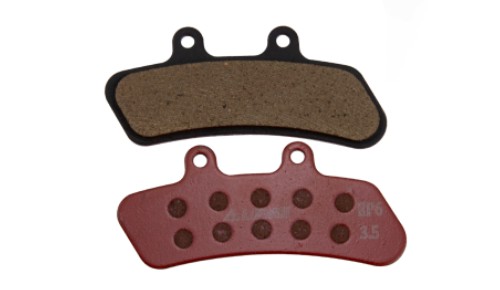

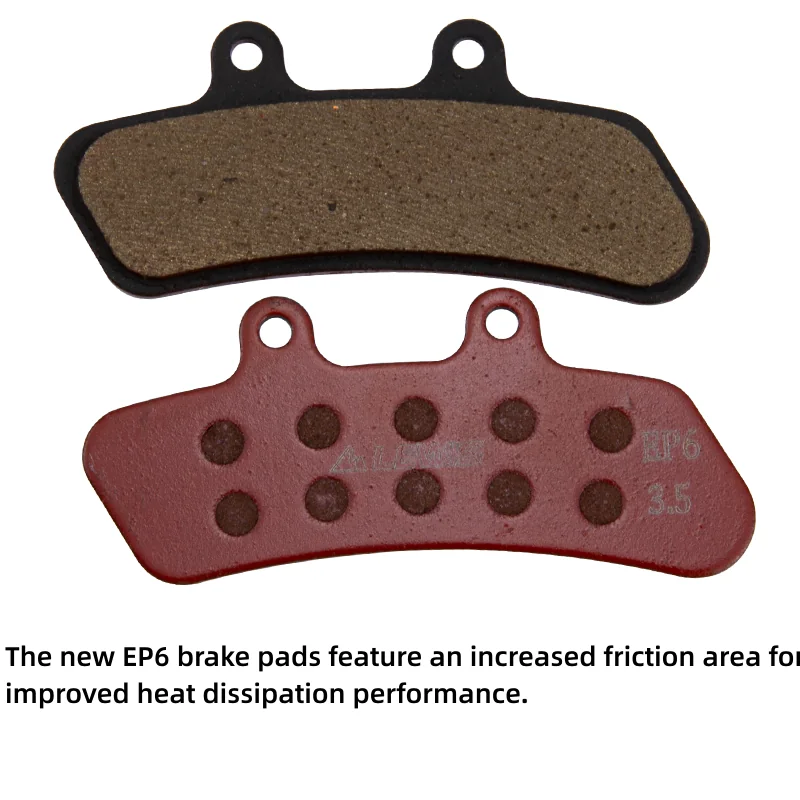

EP6 Brake Pads
The new EP6 brake pads feature an increased friction area for improved heat dissipation performance.

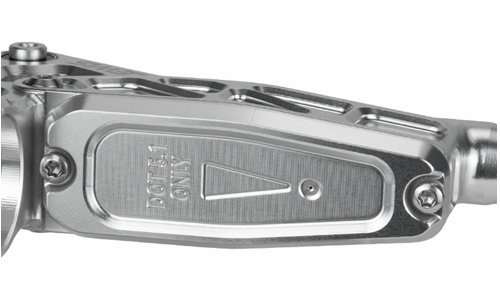

Large-volume oil Reservior
Large-volume oil reservior, reduces maintenance frequency.Utilizes DOT 5.1 brake fluid for superior high-temperature performance.

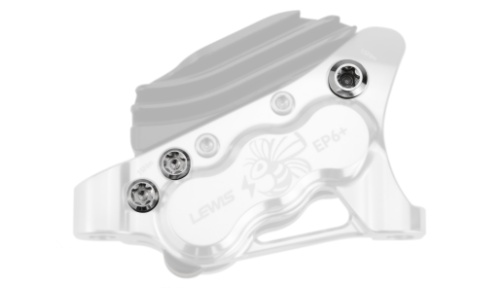

3-Bolts Caliper Fixation
Multi-bolt fixation ensures the stability of the caliper under high-strength usage conditions.

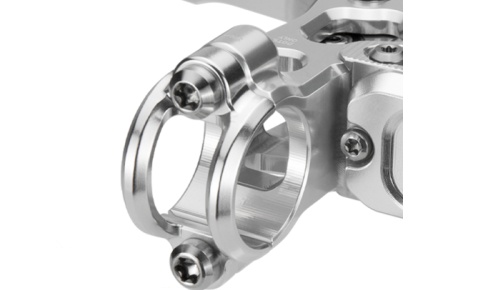

New Clamp Design
New clamp design for higher strength and easier installation.

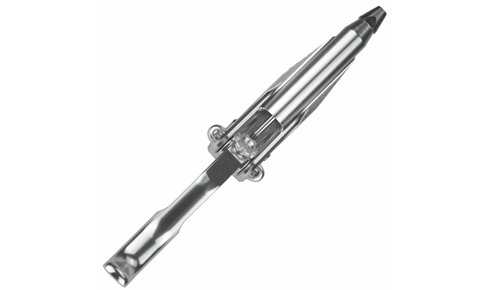

Ambidextrous Brake Lever
Left and right-hand universal design accommodates different brake installation preferences.

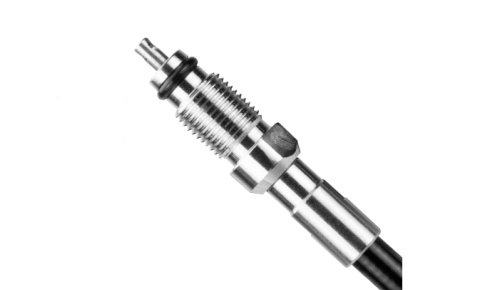

Anti-Leak Oil System
Detachable Olive Head used in Anti-leak System makes it easier for the rider to disassemble the brake hose.
Specifications
| MASTER CYLINDER | |
| Type | Axial |
| Material | CNC 7075T6 Aluminum |
| Color | Black, Silver |
| Clamp Type | Split |
| Screws | Stainless Steel |
| LEVER RATIO ADJUSTMENT SYSTEM | YES, Tool Free |
| LEVER REACH ADJUSTMENT | Yes, with a provided 2mm Allen key |
| LEVER BLADE | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver |
| CALIPER | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver, Black & Silver, customized colors |
| MOUNT TYPE | Post mount |
| Piston | 2 x 17mm+4 x 14mm, Ceramic+ Insulation Layers |
| Screws | Stainless steel |
| Brake Pads | Metallic EP-63 |
| Hose | K28 Black braided Oil hose |
| Hose size | Outside Diameter 5mm，Bore 2.2mm |
| Hose length | 110cm front, 165cm rear |
| Hose finish | Black, Braided |
| INTENDED USE | EMTB, E-motorcycle |
| Rotors | HD220-54mm(220mmx3mm), HD220-44mm(180/200/220mmx2.3mm) Recommending PureTrek 2.3mm rotors or other brands of 2.3mm -3.0m thick rotors |
| Adapter & Rotor Guard | No Need |
| WEIGHT | Master Cylinder 149g, Caliper 260g |
| Oil | DOT 5.1(Large oil reservoir design) |
