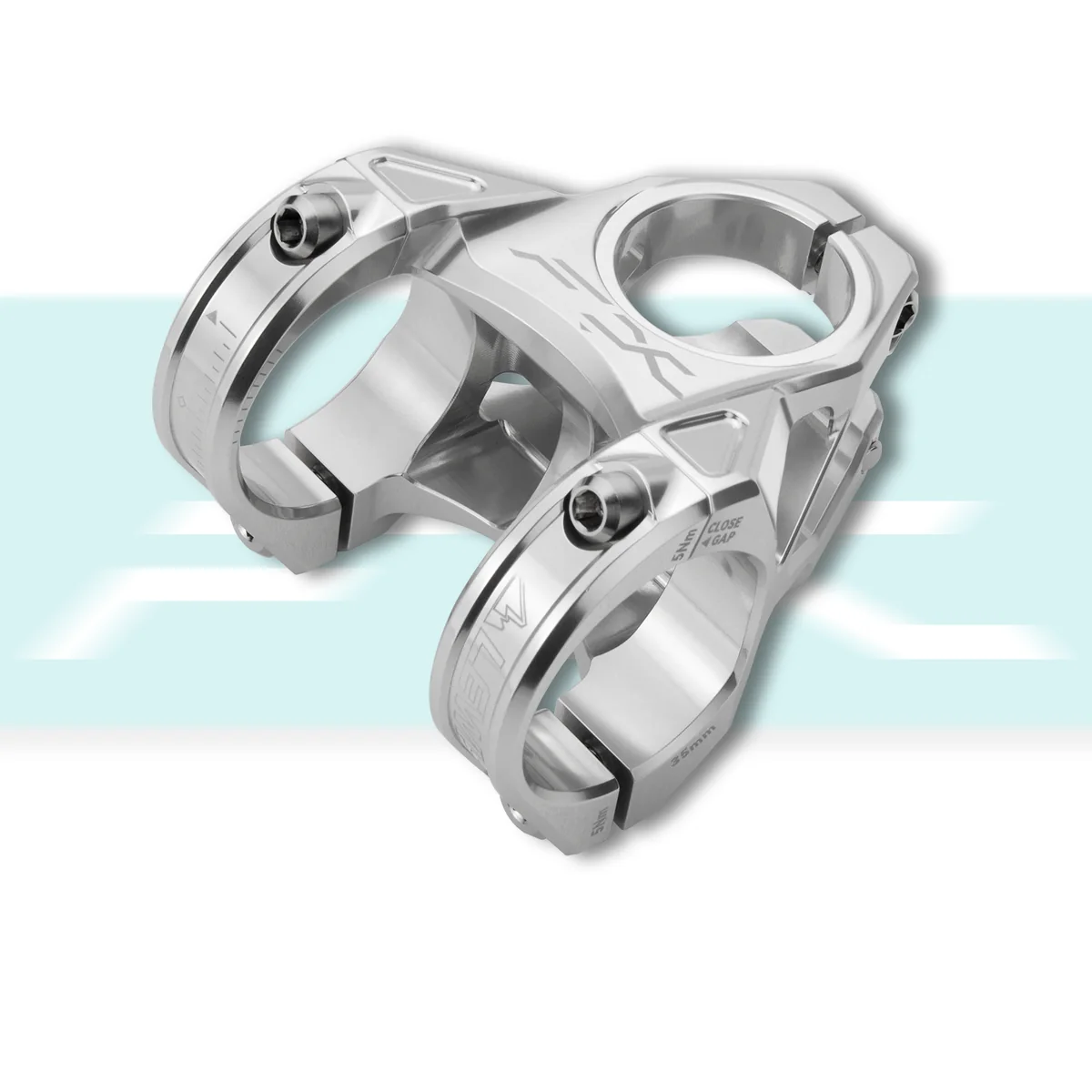

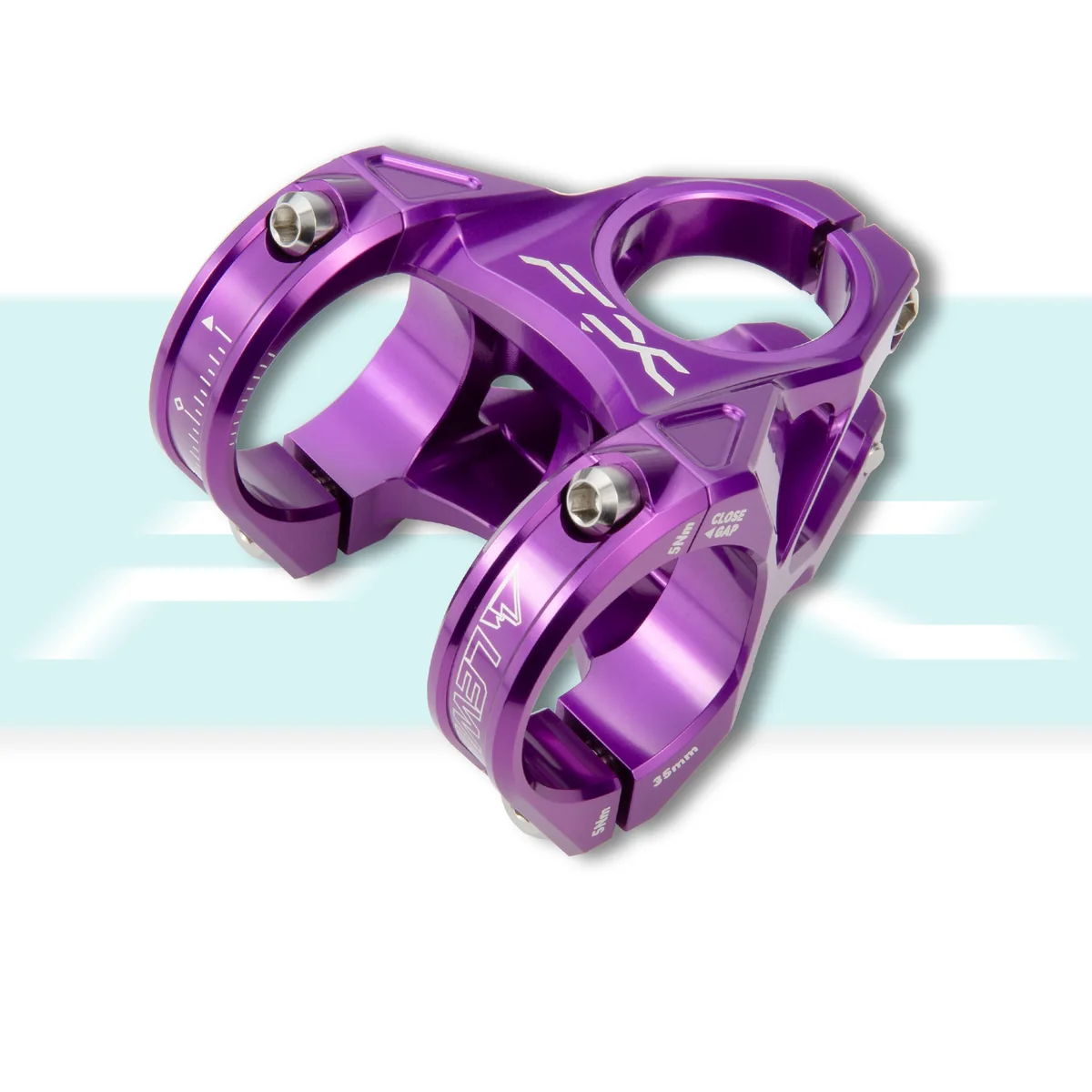

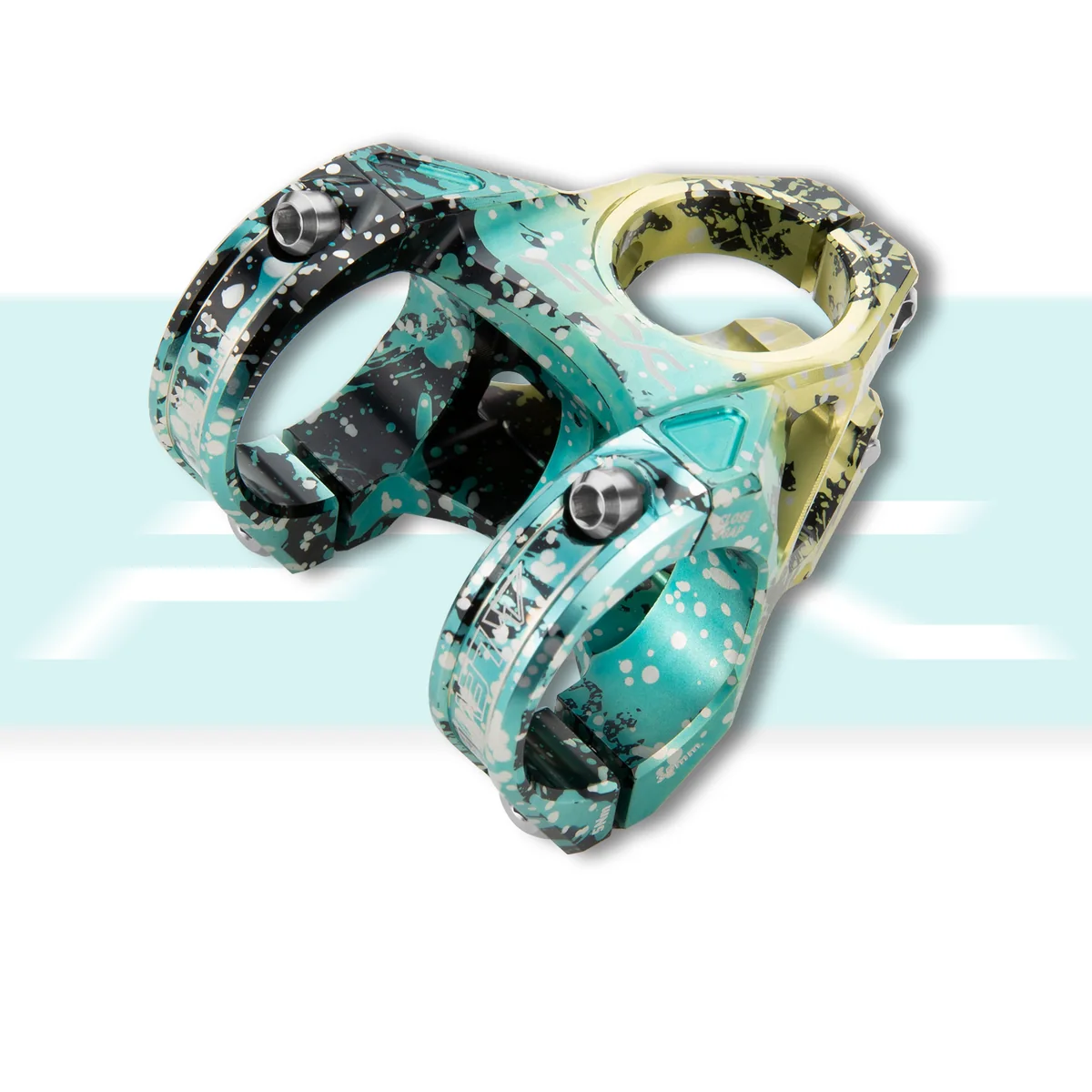

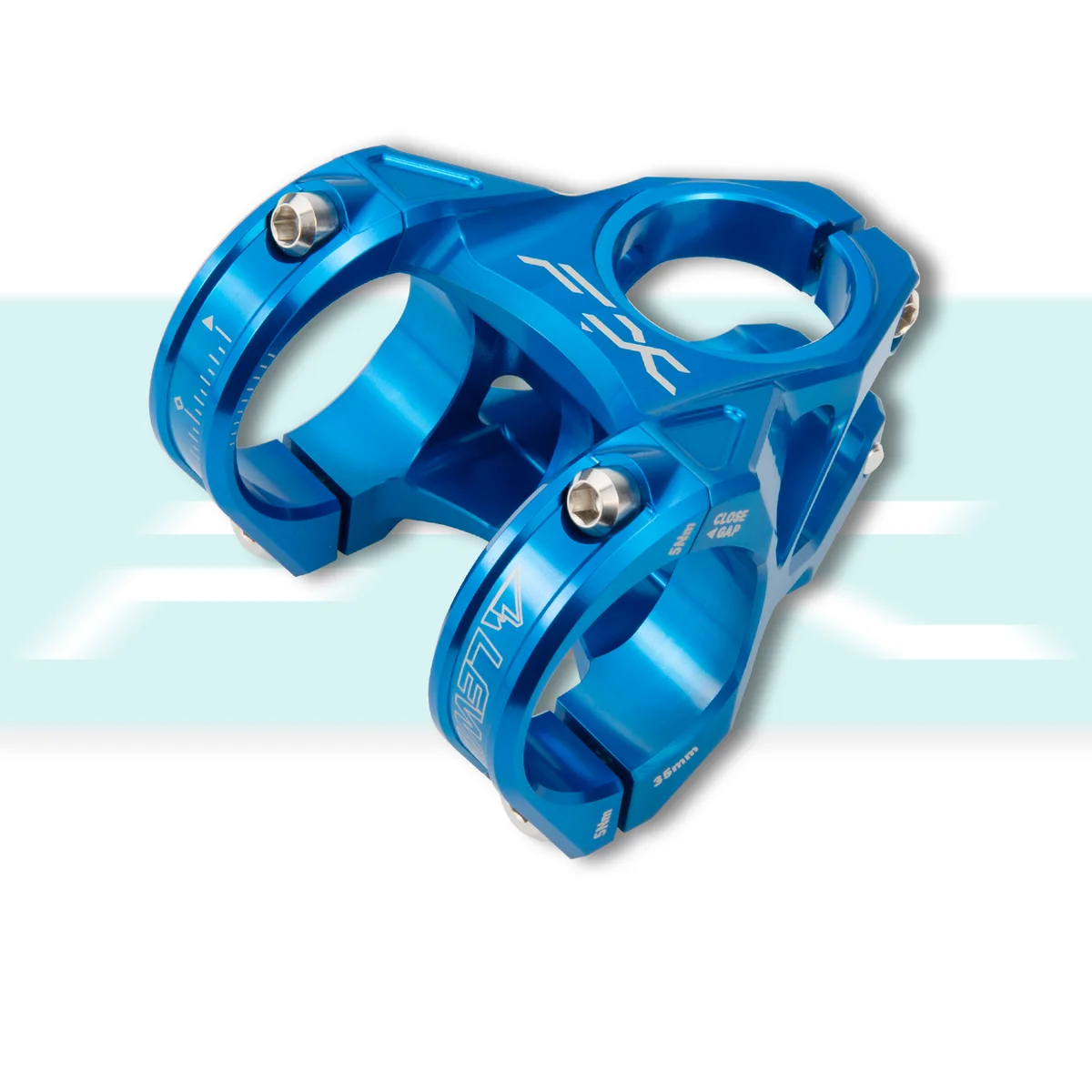

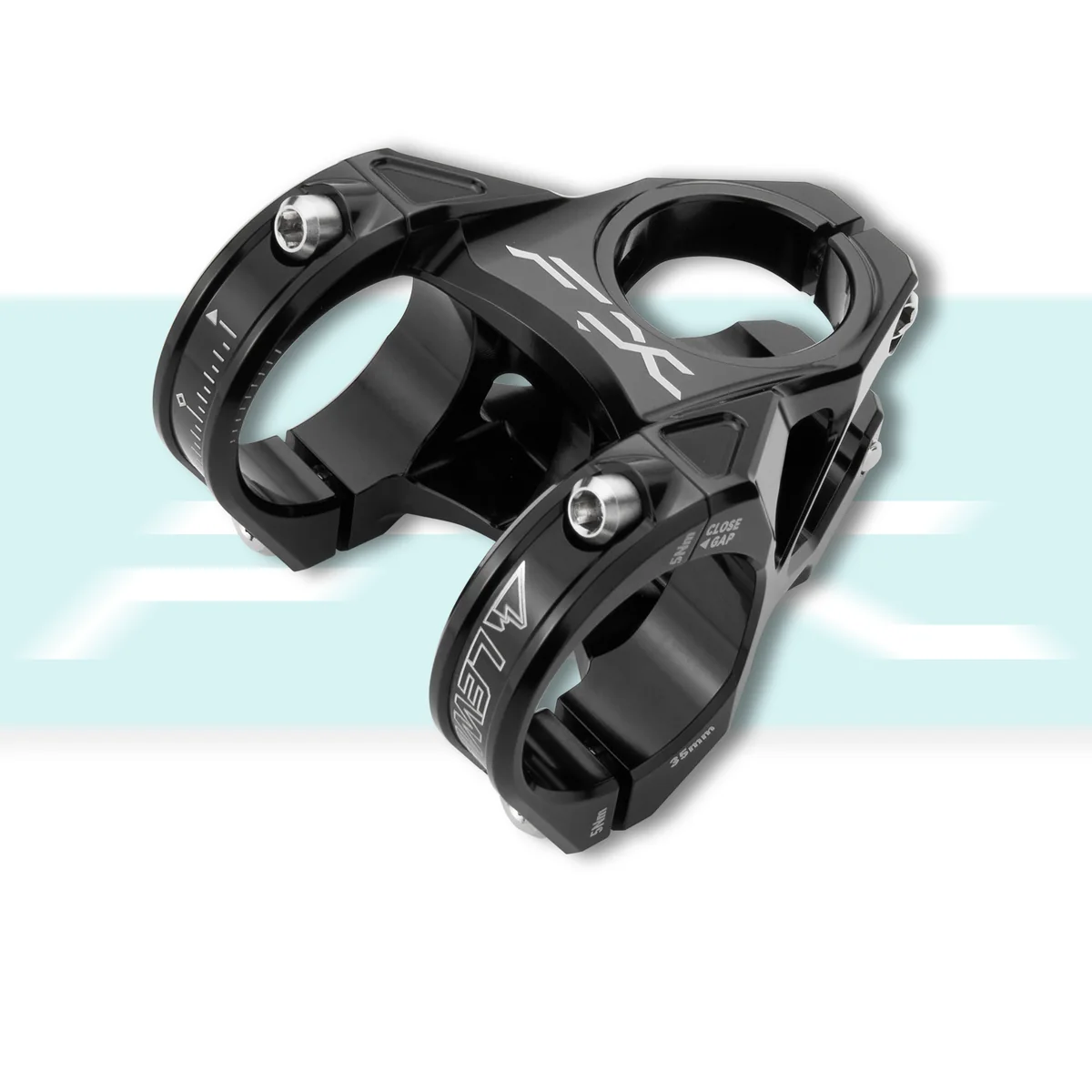

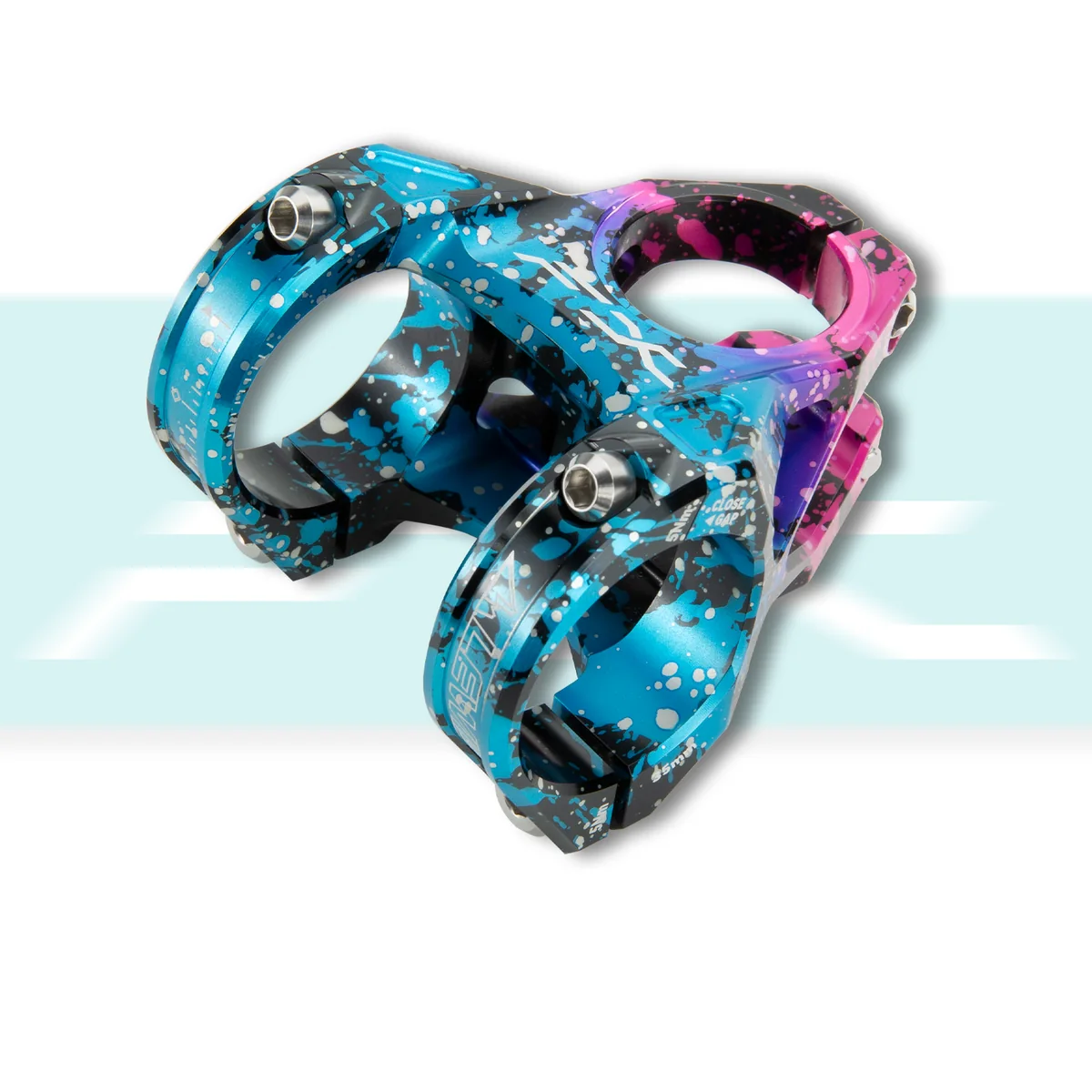

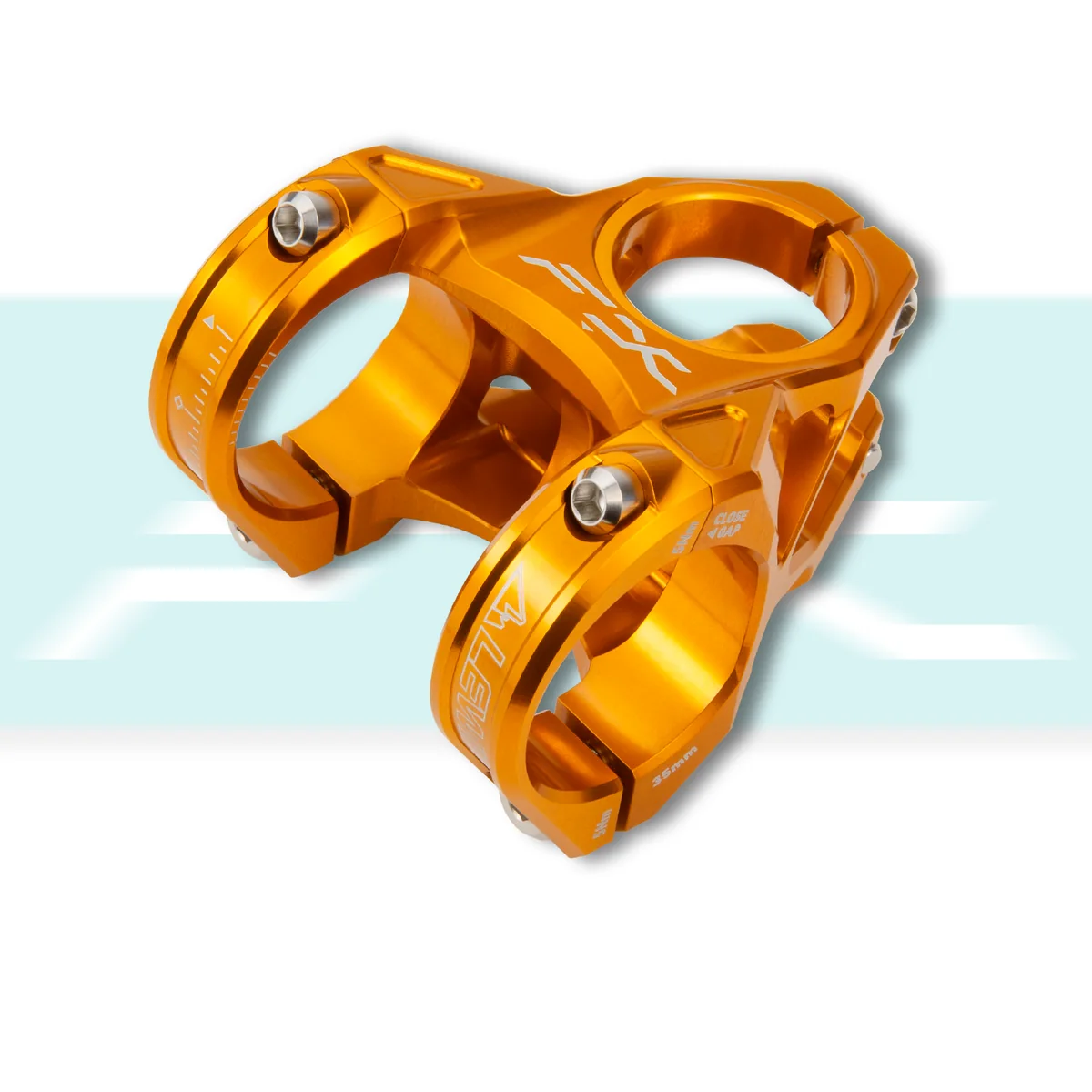

PureTrek Stem FX-SS
-
Estimated Delivery:Oct 20 - Oct 24
-
Free Shipping & Returns: On all orders over $75
CNC machined from 7075 Aluminum
Stainless steel bolts
PURETREK-FX stem, excellent design, extreme performance, extraordinary handling experience.
Optimized for high-intensity use, it is lightweight and at the same time has the same rigidity and strength as the Downhill stem.
Clamp Width: 70mm
Center distance: 40mm
Fork bore: 28.6mm
Handlebar cross bore: 35mm
FX stem(Stainless steel Bolts): 152g
Colors: Silver, Black, Purple, Blue, Orange, and Golden Jade
See Details Below
Technology
Single-end Locking Design
Single-end locking design, reinforced locking end face strength while reducing the impact of stress accumulation caused by improper installation on the overall strength of use.
Larger Bolts Design
Non-locking end faces are designed with larger bolts to enhance the strength of the stem.
Clamping width: 70mm
The width of thr clamping is 70mm, which is 3mm-4mm wider than the commonly seen upright handlebars, giving FX stem the same rigidity performance as the upright handlebars for high-speed descents.
Handlebar Clamping contact width: 15mm
The unilateral contact width has reached 15mm, reducing the stress accumulation between the handle bar and the stem, thus extending the lifespan.
Specifications
| Material: | 7075-T6 Aluminum |
| Clamp Width: | 70mm |
| Center distance: | 40mm |
| Stack Height | 40mm |
| Fork bore: | 28.6mm |
| Handlebar cross bore: | 35mm |
| Bolts: | Stainless steel |
| Weight: | 152g |
| Colors | Black, Silver, Purple, Blue, Orange, Nebula, Golden Jade |
