PureTrek HD-E Disc Brake Rotor 2.3/3mm Thick for MTB
-
Estimated Delivery:Oct 20 - Oct 24
-
Free Shipping & Returns: On all orders over $75
Size: 180mm*2.3mm/200mm*2.3mm/160mm*3.0mm/223mm*2.3mm/223mm*3.0mm
BCD 44mm for MTB, E-Moto Front Wheel
Material: 420 stainless steel.
Laser cut and molded with high precision, low deformation and low induced stress.
The dense perforated design used in the HD rotor effectively increases the heat dissipation area of the rotors.
The 12-spoke support design, coupled with internal triangular reinforcement, increases the support strength at the fixed position of the rotor, reducing the likelihood of fastener loosening caused by rotor resonance.
The surface employs a multifaceted polishing process to ensure uniform smoothness and roughness of the rotor surface.
The edges are chamfered, and all cut surfaces are coated with electrophoretic paint. This not only prevents rust but also to some extent reduces the occurrence of injuries caused by contact with the sharp edges of the rotor, thereby enhancing the safety attributes of the rotor.
Multiple specifications, suitable for front wheel of Surron Light bee, Talaria and EMX.
Specifications
| Material | 420 Stainless Steel |
| Mounting Bolt hole Distance Size: | 44mm (for MTB, E-Moto Front wheel hub) |

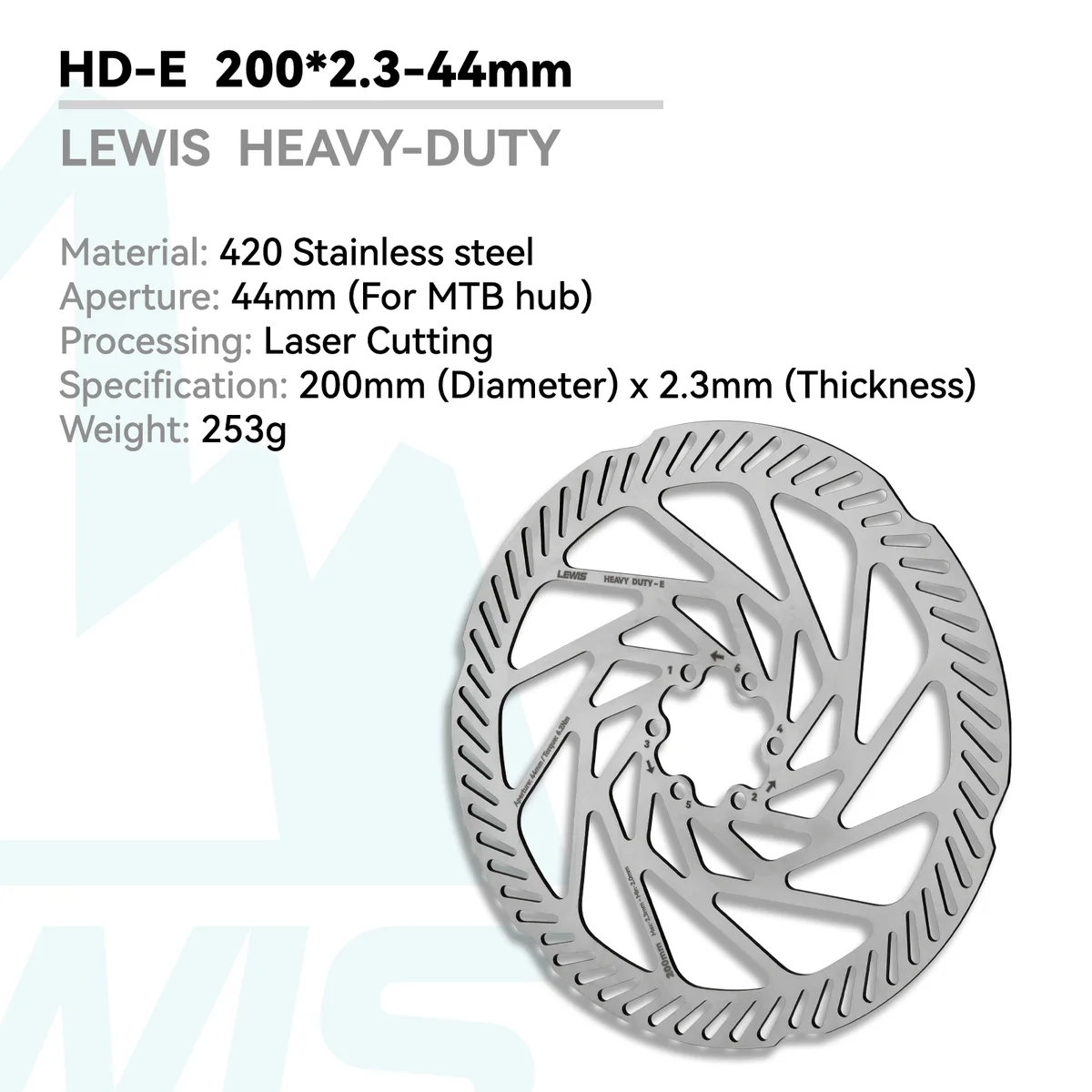

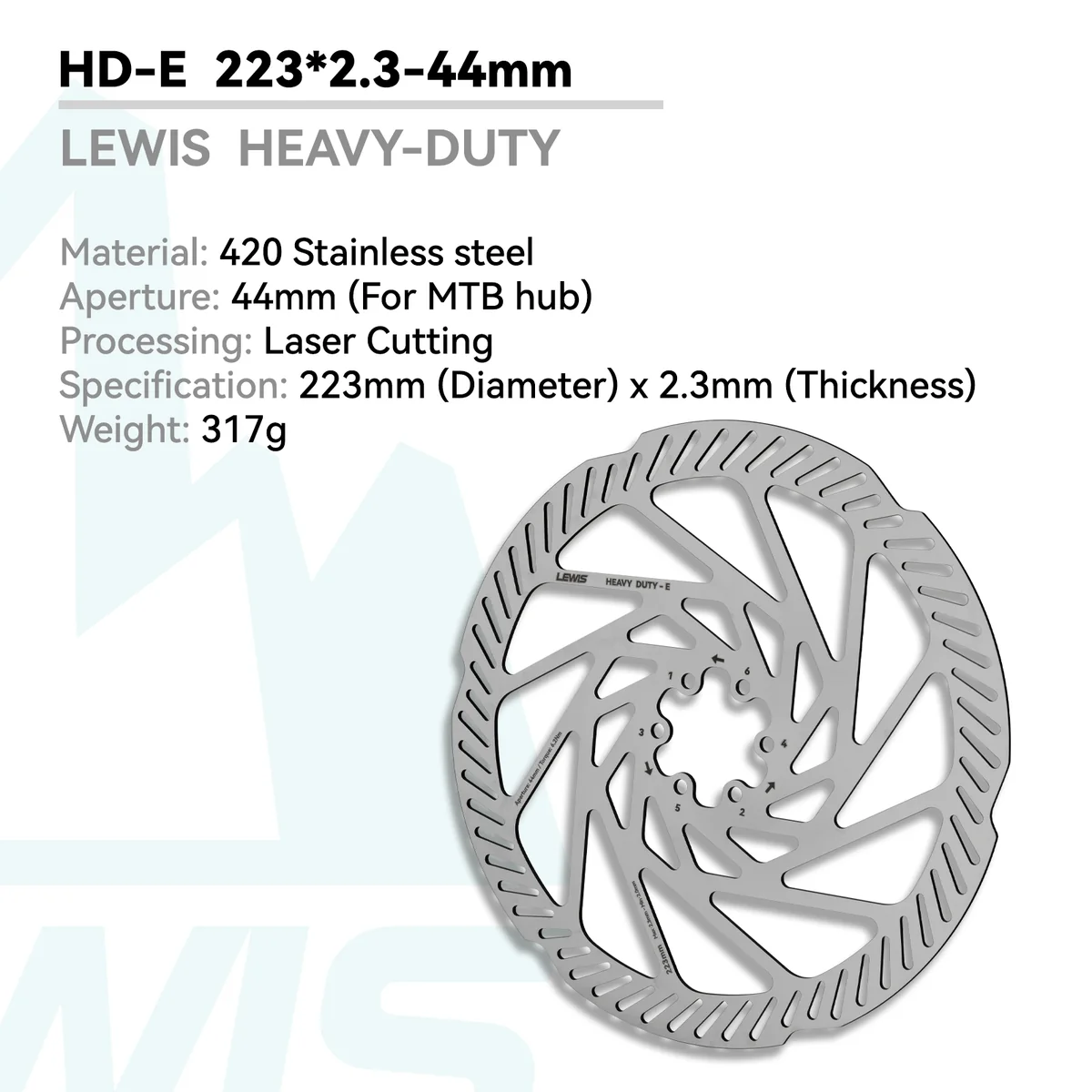

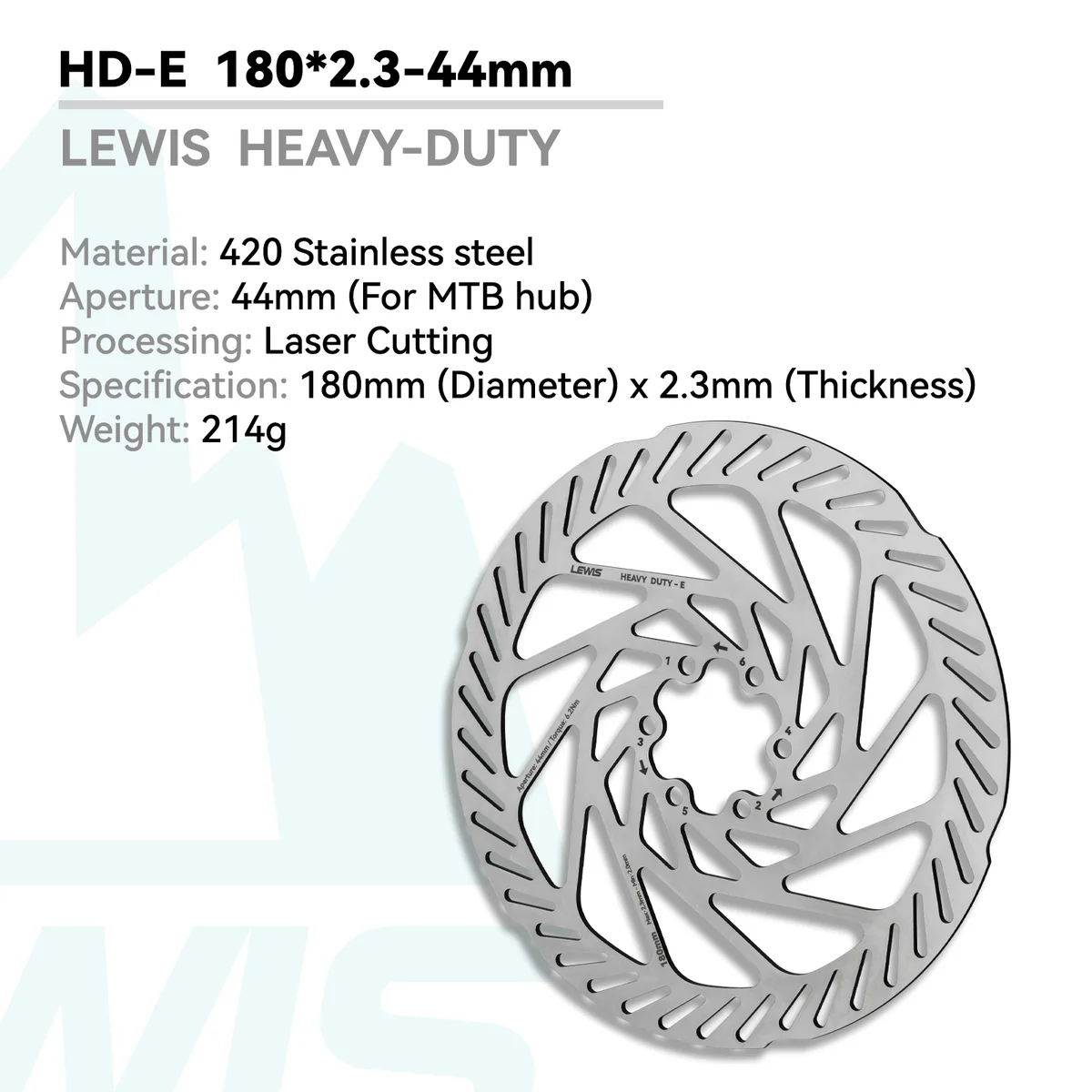

| Sizes | 180mm*2.3mm-44mm(214g) / 200mm*2.3mm-44mm(253g) / 223mm*2.3mm-44mm(317g) / 223mm*3.0mm-44mm(415g)/ 160mm*3.0mm -44mm for E-scooters |
| Processing technology: | laser cutting, integrated molding |
| Feature: | 12-spoke support design for improved support strength and weight reduction |
